honey, shower gel, skin lotion, toothpaste, cosmetic cream packing machine

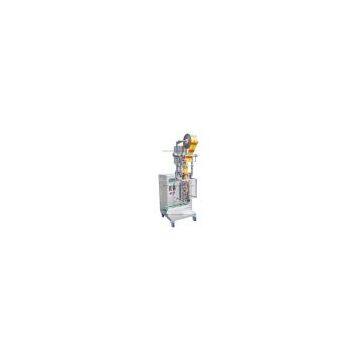

Automatic Liquid/Paste Packing Machine
KL-50YS

(I) Features
1. Simple structure, the machine function is steady and reliable, easy
operation and simple maintenance.
2.PLC control, touch screen, easy operation, beautiful outlook.
3. Intelligent photosensor tracking, positioning the trademark accuracy.
4. Automatic forming bag, filling, measuring, sealing, finished product output
all the process technology parameter.

(II) Application
Suitable to pack liquid / paste materials, such as pesticide, shampoo, body
foam bath lotion, facial cream, ingredient oil, fruit sauce, tomato ketchup and
honey shower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible
oil, soy sauce etc.

(III) Specification
Model KL-50YS
Raw materials Liquid / paste
measuring range 1-50ml
Filing method liquid pump
Bag size 　Length:20-130mm Width:20-130mm
Sealing type side seal
Speed 30-60bags/min
Power 　AC220V 50Hz 370W
Dimension (L)600x(W)600x(H)1600 mm
Weight GW 220kg
Film Paper/polyethylene；cellophane/polyethylene；pla , ted
aluminum/polyethylene; BOPP/polyethylene；nylon/polyethylene and so on.
Function Automatically measuring volume, forming, filling, sealing,
cutting, printing date and cutting easy tearing notches.
Remark 　

(IV) Optional device
1.Printer
2.Straight line middle sealing wheel
3.Net line side sealing mould
4.Supper touch screen
