agricultural, food, industrial, chemical, vertical pillow packing machine

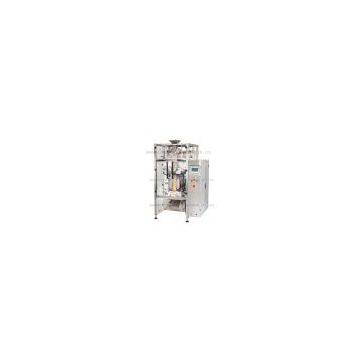

Automatic Vertical Packing Machine
Model: KL520

Application
Suitable to pack granule, solid state material, powder & liquid, like sugar,
nuts, beans, coffee, potato chips, puffed food etc.
Features:
1. Famous brand PLC control system, large touch screen, easy operation.
2. Servo feeding film system, high precision position, superior
performance and extraordinary, good outlook package.
3. Perfect automatic alarm protection system reduces the waste for
minimum.
4. The machine with measuring device connection can automatically finish
the calculating, conveying, filling and forming bag, date printing for whole
processing.
5. The machine can pack various kinds of bags, such as flat bag (back seal
or pillow seal bag, 3 side seal bag, 4 seal bag), handbags, punching bags.

Specification:

Model KL520
Bag length 80-400mm
Bag width 150-250mm
Film width 220-520mm
Film thickness 0.04-0.09mm
packing speed 5-50bag/min
Packing materials OPP/CPP OPP/CE PET/PE NILO/PE PE
Power supply 220V AC 50Hz 4KW
Air consumption 0.65Mpa 0.7m3/min
Dimension LxWxH:1795x1150x1650mm
Weight 600Kg

Optional:
1. PE film device;
2. Hole punching device;
3. Chain bag device;
4. Gas filling device;
5. Vacuum device;
