Sell 126kV Composite Post Insulator

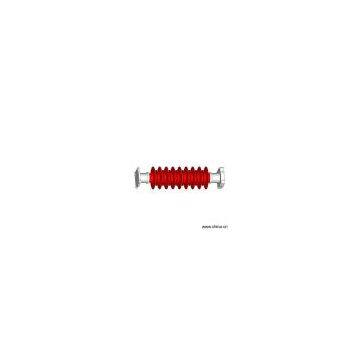

Sell 126kV Composite Post Insulator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1994
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Model No.:FZBW-110/4
Product Origin:China
Brand Name:Gaoneng
Price Terms:
Payment Terms:
Certification:
Description:Product Name: 126kV Composite Post InsulatorModel Number: FZBW-110/4Place of Origin: ChinaFeatures: 1) Manufactured by means of injection whole-molding technology 2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional seal defects Materials: 1) Silicon Rubber for sheds/ housing 2) Glass-fiber reinforced epoxy resin rod (ECR type) for core 3) Hop dip galvanized cast steel for metal fittings Electromechanical specifications: 1) Rated voltage: 110kV 2) Specified mechanical load (bending): 4N 3) Arcing distance 1100mm 4) Creepage distance: ≥3300mm 5) Lightning impulse withstand voltage (peak value): ≥550kV 6) Wet 1 min power-frequency withstand voltage (effective value): ≥230kV 7) Section height: 1300mm 8) Routine test load: 4kN 9) Approximate net weight: 21kg
