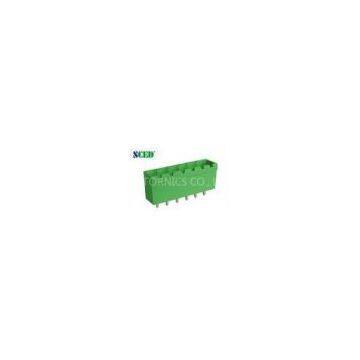

Single Level 5.08mm Electrical Plug In Terminal Block 300V Header , Male Sockets
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
600V PCB Through Panel Terminal Block Connector
-
Pitch 6.2mm 300V 15A Through Panel Terminal Blocks with Vertical Wire Inlet 2P - 24P
-
2P - 24P 150A Feed Through Panel Terminal Blocks Bulkhead Connectors Pitch 18.8mm
-
18.8mm 600V 150A Electrical Through Panel Terminal Blocks for PCB , Power Supply
-
Pitch 15.1mm Feed Through Terminal Blocks for Industry Control 600V 115A
-
Pitch 10.1mm Through Panel Terminal Block for Electric Lighting , 300V 65A, 2P - 24P
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TP508H-00 |
Product Description
Certification:UL, CE
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Single Level 5.08mm Electrical Plug In Terminal Block 300V Header, Male Sockets 18A, 2-24P Pluggable Terminal Blocks
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
||
|
Wire Range AWG |
|||
|
IEC Technical Data |
|||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
400 / 18 |
500 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Material |
|||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
PinDimension mm |
1.0 x 1.0 |
