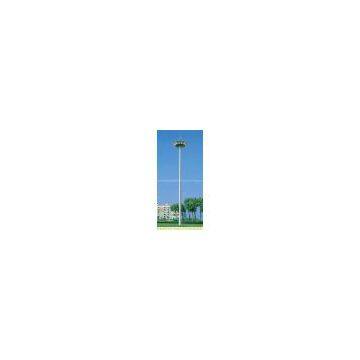

High Mast Lighting Pole

High-mast lighting is a tall pole with lighting attached to the toppointing towards the ground, usually but not always used to light a highway orrecreational field. The pole that the lighting is mounted on is generally atleast 30 meters tall, while the lighting consists of a luminaire ringsurrounding the pole with one or several independent lighting fixtures mountedaround it. Some units have the lighting surrounded by a circular shield toprevent or reduce light pollution or lighttrespass from affecting neighbourhoods adjacent to the highway.

MEGATRO provide High Mast Lighting Poles with every shape are tailor made to ourcustomer’s requirements. The high mast lighting height at least 30M, evenhigher, the Masts shall be continuously tapered of polygonal cross section,presenting good visual appearance. Masts are often made to suit clients'particular requirements.

Besides roadways, MEGATRO high mastlighting is used in other sites requiring lighting over a large area:

1. Outdoor Yard lighting, Area lighting, Petro-chemical plant, Truck andbus Terminal

2. Railway yards/Ship docks/Airports/Prisons/Parking lots

3. Industrial and commercial sites

4. Overhead Power Transmission/Monopole

5. Telecom antenna mounting, Camera mounting

6. Signage for Petrol Pump

7. Telescopic Tilting Mast

MEGATRO high mast lighting pole specification as follow:

1.material steel: Chinese steel Q235, Q345, or ASTM A36, GR50, ORStainless pipe or other material
2.Finishing: Hot dip galvanizing with zinc coat thickness 86 microns or Powdercoating
3 Shape: tapered and non-tapered, octagonal, polygonal and round
4 Height: 30M, or as per client requirement

5 Length: within 14 meters once forming without slip joint.
6 Thickness of bending plate: 2.5mm-65mm

7. Safety: 2.0 or as per design

8. Head Frame point suspension type better for balancing of Lantern Ring

9. Aerodynamic shape and mechanically strong to face wind speed up to 180km/h.

10. Easiest to install as base is identical from all direction andavailable in direction and available in direct grouting type and Base Plate boltedtype

11. Robust Door opening and locking system increase life of internalaccessories

Production:as per clients’ requirements

Origin:Qingdao, Shandongprovince,CHINA

Paymentterm: TT; L/C

Leadtime: to be discussed by Buyer and Seller
