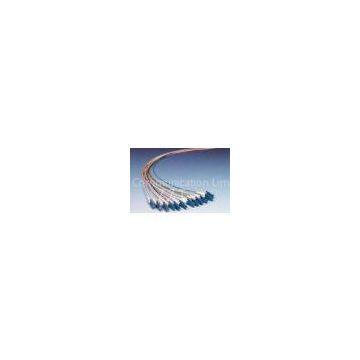

Tight Buffer Cable Fiber Optic Pigtail LC / PC , Single Mode Patch Cord
Quick Detail:
LC/UPC, LC/APC and LC/PC fiber optic pigtail, in single mode 9/125 and multimode 50/125, 62.5/125, OS1, OS2, OM1, OM2, OM3,OM4 fibers are available, cable length is customized.
Description:
ZZT provide a full range of pigtails, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode. The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.
Material:
Ferrule: Zirconia
Fibers: Corning, Draka, YOFC
Jacket: PVC, LSZH, OFNR, OFNP
Cable: Tight buffer, easy stripping tight buffer, loose tube
Applications:
Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss and high Return Loss
Varieties of Cable Assemblies
RoHS Compliance
Specifications:
|
SM |
MM |
||||
|
9/125 |
50/125 |
62.5/125 |
OM3 OM4 |
||
|
UPC |
APC |
PC |
|||
|
Insertion loss |
≤0.2dB |
≤0.3dB |
|||
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
||
|
Durability |
1000 times, ≤0.2dB |
1000 times, ≤0.3dB |
|||
|
Working Tem. |
-40 to +80℃ |
||||
|
Storage Tem. |
-40 to +80℃ |
||||
|
Endface Geometry |
|||||
|
Parameter |
2.5μmm Ferrule |
1.25μmm Ferrule |
|||
|
UPC |
APC |
UPC |
APC |
||
|
Radius of Curvature |
10～25mm |
5～12mm |
7～25mm |
5～12mm |
|
|
Apex Offset |
0～50μm |
0～50μm |
0～50μm |
0～50μm |
|
|
Fiber Height |
-100～50nm |
-100～100nm |
-100～50nm |
-100～100nm |
|
|
Angle |
7.7-8.3degree |
7.7-8.3degree |
|||
|
3D Geometry |
Fiber optic pigtail , LC Fiber optical pigtail , Fiber optic cable assembles
