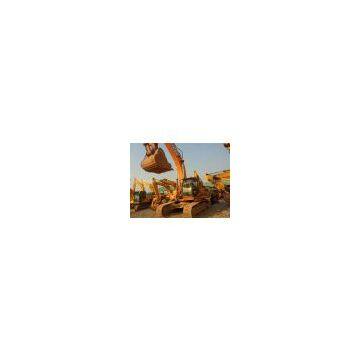

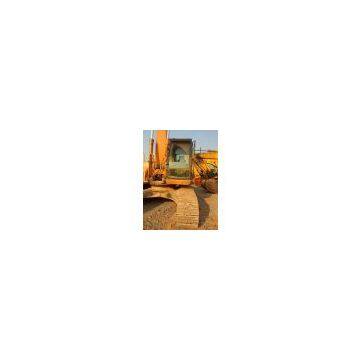

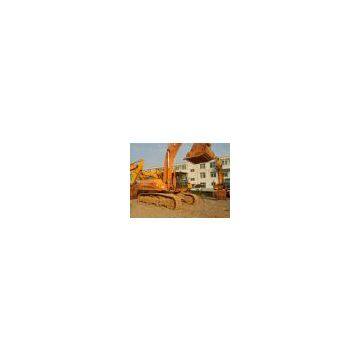

USED CASE CRAWLER EXCAVATOR CX360B IN VERY GOOD WORKING CONDITION

1、SPECIFICATION

Brand: CASE 360B

operation weight(kg):36100

Bucket capacity(m3):2.1

The movable arm length (mm) :6450

Arm length(mm):2630

Country of origin:Japan

2、PERFORMANCE

Rotary speed(rpm):9.8

Moving speed (Km/h) :3.5/5.5

Grade ability(%):70/35°

Earth pressure (Kpa) :67

Bucket digging force(KN):232

Bucket rod digging force(KN):199

3、ENGINE:

Engine model:ISUZU AH-6HK1XYSS

Rated engine power(kw/rpm):207.3/2000

Displacement(L):7.79

4、OIL CAPACITY

Fuel tank(L):580

Hydraulic oil tank(L):175

The hydraulic system (L) :350

Engine oil replacement quantity(L):38

Cooling liquid (L) :30

5、MAIN SIZE(mm)

Transportation size(mm)(Lenth x Width x Height):11130x3200x3500

Cab height(mm):3130

The total length of the track (mm) :4980

Crawler plate width (mm) :600

Track width (mm) :3200

Minimum ground clearance(mm):480

6、OPERATING RANGE

Maximum digging radius (mm) :10670

Maximum digging depth(mm):6730

Maximum digging height(mm):10320

maximum dump clearance(mm):7140

maximum vertical digging depth(mm):5970

7、PAYMENT AND SHIPMENT

In good working condition

Price: Negotiable

Locate in shanghai,China

Package: In bulk or by container

Deliver in 1-7 days after confirmation

Payment:T/T 30% deposite ,70% before loading

8、AFTER-SALE SERVICE & WARM TIPS

(1)、We can arrange all for the shipment if you need once we made a deal.

(2)、We have a very professional team to solve all problems or buy some quick-wear      parts for you before loading.

(3)、All photos and datas of products revealed here is based on truth of machines.

(4)、All machines are imported by normal way with complete procedures.

Should you have any other question, Please feel free to contact us.
