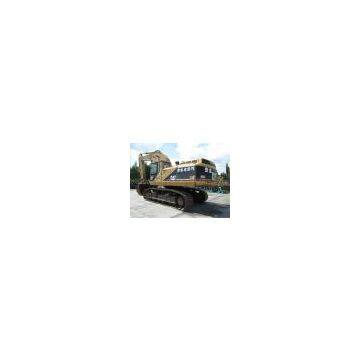

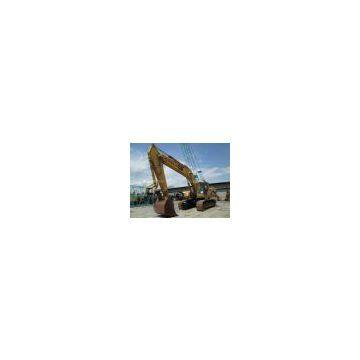

Help CenterUSED CATERPILLAR CRAWLER EXCAVATOR 350 IN VERY GOOD WORKING CONDITION
Related Products
-
USED CATERPILLAR CRAWLER EXCAVATOR 320C IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set -
USED HITACHI CRAWLER EXCAVATOR EX200-5 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
-
USED HITACHI CRAWLER EXCAVATOR ZX200-6 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
-
USED HITACHI CRAWLER EXCAVATOR ZX330-3 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
-
USED HITACHI CRAWLER EXCAVATOR ZX350H-3 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
1. Selected Dimensions
A. SHIPPING LENGTH OF UNIT: 12200 mm
C. SHIPPING HEIGHT OF UNIT: 3750 mm
I. MAX CUTTING HEIGHT: 12070 mm
J. MAX LOADING HEIGHT: 8450 mm
K. MAX REACH ALONG GROUND: 13450 mm
L. MAX VERTICAL WALL DIGGING DEPTH: 8200 mm
M. MAX DIGGING DEPTH: 9570 mm
2.Dimensions
B. WIDTH TO OUTSIDE OF TRACKS: 3200 mm
D. LENGTH OF TRACK ON GROUND: 4040 mm
E. GROUND CLEARANCE: 730 mm
G. HEIGHT TO TOP OF CAB: 3500 mm
H. TAIL SWING RADIUS: 3580 mm
O. COUNTERWEIGHT CLEARANCE: 1420 mm
3.Undercarriage
F. TRACK GAUGE: 2550 mm
N. SHOE SIZE: 600 mm
4.Specification
Engine MODEL: 3306ATAAC
GROSS POWER: 286 hp 213.3 kw
DISPLACEMENT: 10.5 L
5.Operational
OPERATING WEIGHT: 48040 kg
FUEL CAPACITY: 700 L
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE: 34335.9 kPa
HYDRAULIC PUMP FLOW CAPACITY: 770 L/min
6.Undercarriage
SHOE SIZE: 600 mm
MAX TRAVEL SPEED: 4.6 km/h
DRAWBAR PULL: 336.3 kN
TRACK GAUGE: 2550 mm
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 reach boom w/ stick 4800mm
SHIPPING HEIGHT OF UNIT: 3750 mm
SHIPPING LENGTH OF UNIT: 12200 mm
MAX DIGGING DEPTH: 9570 mm
MAX REACH ALONG GROUND: 13450 mm
MAX CUTTING HEIGHT: 12070 mm
MAX LOADING HEIGHT: 8450 mm
MAX VERTICAL WALL DIGGING DEPTH: 8200 mm
7.Dimensions
WIDTH TO OUTSIDE OF TRACKS: 3200 mm
HEIGHT TO TOP OF CAB: 3500 mm
GROUND CLEARANCE: 730 mm
COUNTERWEIGHT CLEARANCE: 1420 mm
TAIL SWING RADIUS: 3580 mm
LENGTH OF TRACK ON GROUND: 4040 mm
8、PAYMENT AND SHIPMENT
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
Payment:T/T 30% deposite ,70% before loading
9、AFTER-SALE SERVICE & WARM TIPS
(1)、We can arrange all for the shipment if you need once we made a deal.
(2)、We have a very professional team to solve all problems or buy some quick-wear parts for you before loading.
(3)、All photos and datas of products revealed here is based on truth of machines.
(4)、All machines are imported by normal way with complete procedures.
Should you have any other question, Please feel free to contact us.
