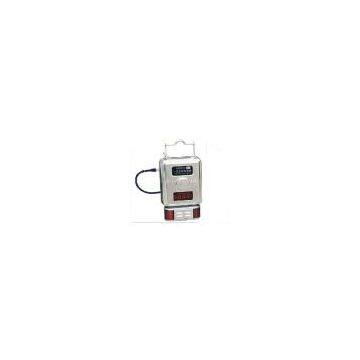

GRG5H Infrared Carbon Dioxide Sensor

GRG5HInfrared carbon dioxide sensor

 This product USES the international advanced non-dispersive infrared detection technology, overcome the principle of thermal catalytic sensor calibration cycle is short, easy to poisoning, and by adopting the technology of embedded microcontroller controller, the built-in precise temperature compensation circuit the measuring accuracy will not drift due to temperature change. The instrument has the measuring accuracy, fast response speed, calibration cycle is long, is not affected by other gases, wide measuring range, low power consumption, long service life, stable performance, high reliability, etc. The instrument can be set up via the remote control is convenient working point, at the same time the output of 200 ~ 1000 hz frequency signal and the RS - 485 digital signal, convenience and various types of supporting the use of coal mine safety monitoring system.

Mainly applied to the coal mine mining working face, return air roadway, a gas explosion gas environments, such as mechanical and electronic chamber for continuous measurement of gas concentration. This instrument has the determination, according to the gas instantaneous concentration, transfinite alarm and output power control, infrared remote control signal calibration, digital communications, and other functions.

　　Parameter：

　　Measuring range (0.00～0.50)％CO2(0.50～5.00)％CO2

　　The basic error±0.10％CO2±(0.05+ 5％)％CO2

　Resolution is not less than 0.01％CO2

　　The corresponding time≤25s

　　Working power supply：DC9V～24V/95mA

　　Intermittent sound and light alarm way signal, optical signal visibility of not less than in the dark 20m

　　Remote control distance≤5m

　　Transmission distance≤2km

　　The output signal frequency (200～1000)Hz；Is greater than the output level 3V(Load resistance >1.5kΩ)

　　A digital signal：RS4851200bps～9600bps

　　Explosion-proof marks：ExibI

　　Working temperature ：0℃～40℃

　　Relative humidity≤98%(+25℃)

　　Storage temperature－20℃～＋50℃

　　Installation dimensions 260mm×120mm×50mm

　Weight≤1kg
