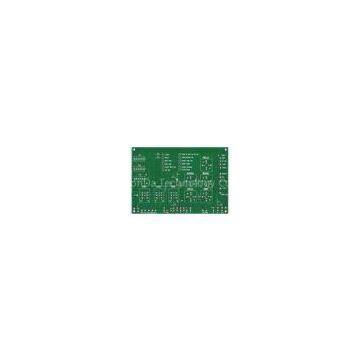

FR4 Rigid Pcb Board 1.6mm Thickness 1 OZ With Immersion Gold UL & ROHS

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

WonDa

Place of Origin

China

Product Description

Delivery Time:5-15 days
Certification:CE, ROHS, UL

FR4 Rigid Pcb Board 1.6mm Thickness 1 OZ with Immersion Gold UL & ROHS Specifications 1.FR4 base,green soldermask,white silkscreen
2.E-test be offered
3.5 days lead time
4.UL&ROHS approved pcb
5.OEM Pcba

- Contract Manufacturing

- Engineering Services

- PCB Design & Assembly

- Product Design

- Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

1.Detailed Specification of PCB Manufacturing

1	layer	1-18 layer
2	Material	FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,FR-1,FR-2
3	Board thickness	0.2mm-4mm
4	Max.finished board side	800*508mm
5	Min.drilled hole size	0.25mm
6	min.line width	0.075mm(3mil)
7	min.line spacing	0.075mm(3mil)
8	Surface finish/treatment	HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Certificate	UL,ISO9001,ISO14001,ROHS,CQC
15	profiling punching	Routing,V-CUT,Beveling
16. providing OEM service to all sorts of printed circuit board assembly

2.Detailed Terms for Pcb Assembly

Technical requirement:

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.

Quote requirement:

· Gerber file of the bare PCB board

· BOM (Bill of material) for assembly

· To short the lead time, please kindly advise us if there is any acceptable components substitution.

· Testing Guide & Test Fixtures if necessary

· Programming files & Programming tool if necessary
