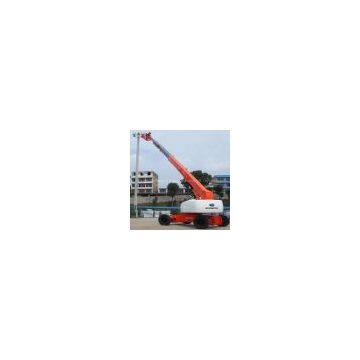

Telescopic booms lift applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This aerial work platform is safe and reliable. Designed with the concept of durability, solidity, and excellent performance, it can meet the need of extremely challenging operating conditions.
Telescopic booms lift parameter:
Telescopic booms lift parameter:
|
Product Performance
|
GTBZ30
|
|
|
Max. platform height
|
99 ft 7 in (30.4 m)
|
|
|
Max. working height
|
106 ft 3 in (32.4 m)
|
|
|
Max. horizontal outreach
|
73 ft 2 in (22.3 m)
|
|
|
Outside turning radius
|
18 ft 3 in (5.57 m)
|
|
|
Inside turning radius
|
8 ft 4 in (2.56 m)
|
|
|
Tail swing
|
6 ft (1.82 m)
|
|
|
Turntable rotation
|
360°
|
|
|
Platform rotation
|
160°
|
|
|
Gradeability
|
42% (4WD)
|
|
|
Load capacity of platform
|
551 lbs (250 kg) - (unlimited)
1058 lbs (480 kg) - (limited) |
|
|
Driving speed (stowed)
|
0~2.7 mph (4.4 km/h)
|
|
|
Driving speed (raised)
|
0~0.7 mph (1.1 km/h)
|
|
|
Max. wind speed allowed
|
41 fps (12.5 m/s)
|
|
|
Max. angle of inclination allowed
|
3°
|
|
|
Max. noise during normal working
|
≤82dB (A)
|
|
|
Max. lateral force allowed
|
400N
|
|
|
Dimensions
|
||
|
Overall length (stowed)
|
42 ft 7 in (13 m)
|
|
|
Overall width (stowed)
|
8 ft 2 in (2.49 m)
|
|
|
Overall height (stowed)
|
10 ft 1 in (3.08 m)
|
|
|
Max. ground clearance
|
1 ft 4 in (0.43 m)
|
|
|
Wheel base
|
12 ft (3.66 m)
|
|
|
Size of platform (L*W*H)
|
6 ft * 2 ft 5 in * 3ft 6in (1.83 m*0.76 m *1.1 m)
|
|
|
Overall weight
|
41160 lbs (18670 kg)
|
|
|
Tire size/type
|
12.00-20/8.5 solid
|
|
|
Volume of hydraulic oil tank
|
150L
|
|
|
Volume of hydraulic system
|
300L
|
|
|
Volume of fuel tank
|
200L
|
|
|
Engine
|
Cummins diesel engine
|
|
|
Drive&steer mode
|
4WD*4WS
|
|
|
Covering parts
|
Steel material
|
