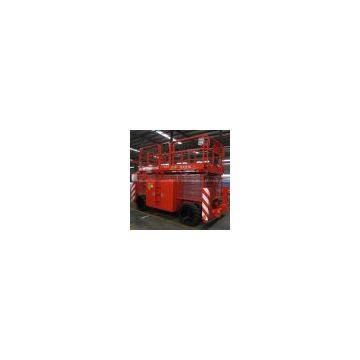

Aerial work platform applies to indoors, field or uneven conditions. Scissor shape design of the boom creates stability and reliability, and enjoys good stiffness and small swing.
Aerial work platform feature:
1. Excellent performance: Superior to other scissor lifts, with better offroad performance and automatic levelling of outriggers.
2. Large load capacity: The maximal load capacity of the platform reaches 1499 lbs (680 kg); the extended platform can load 500 lbs (227 kg), holding 6 operators at the same time.
3. Powerful driving force: The engine is of famous international brand, large in power.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, self-levelling system, and anti-collision transducer option.
5. Good safety: The product is equipped with an emergency descending system, automatic engine abnormal shutdown function, overload limit and rollover protection system, which guarantees operator’s safety.
6. Easy maintenance: Swing-out engine and overhead door, easy to maintain.
Aerial work platform parameter:
|
Product Performance
|
GTJZ16
|
|
|
Max. platform height
|
52 ft 9 in (16.1 m)
|
|
|
Max. working height
|
59 ft 4 in (18.1 m)
|
|
|
Extended platform (front)
|
4 ft 4 in (1.35 m)
|
|
|
Extended platform (rear)
|
4 ft 4 in (1.35 m)
|
|
|
Outside turning radius
|
19 ft (5.8 m)
|
|
|
Inside turning radius
|
12 ft 1 in (3.7 m)
|
|
|
Gradeability
|
40%(4WD)
|
|
|
Load capacity of platform
|
1499 lbs (680 kg)
|
|
|
Load capacity of extended platform
|
500 lbs (227 kg)
|
|
|
Number of operators allowed
|
6 people
|
|
|
Driving speed (out of service)
|
0~3.7 mph (6 km/h)
|
|
|
Driving speed (in service)
|
0~0.7 mph (1.1 km/h)
|
|
|
Levelling capacity (front/rear)
|
7°
|
|
|
Levelling capacity (Left/right)
|
8°
|
|
|
Max. wind speed allowed
|
41 fps(12.5 m/s)
|
|
|
Max. angle of inclination allowed
|
3°
|
|
|
Max. noise during normal working
|
82 dB (A)
|
|
|
Max. lateral force allowed
|
400N
|
|
|
Dimensions
|
||
|
Overall length (stowed)
|
15 ft 9 in (4.86 m)
|
|
|
Overall width (stowed)
|
7 ft 5 in (2.3 m)
|
|
|
Overall height (stowed)
|
8 ft 1 in (2.47 m)
|
|
|
Overall height (with fence unfolded)
|
10 ft 6 in (3.24 m)
|
|
|
Max. ground clearance
|
1 ft 2 in (0.36 m)
|
|
|
Wheel base
|
9 ft 3 in (2.84 m)
|
|
|
Size of platform (L*W*H)
|
12*6.1*3.6 ft (3.75*1.86*1.1 m)
|
|
|
Size of platform (L*W*H), one-way extension
|
16.7*6.1*3.6 ft (5.10*1.86*1.1 m)
|
|
|
Size of platform (L*W*H), two-way extension
|
21.1*6.1*3.6 ft (6.45*1.86*1.1 m)
|
|
|
Overall weight
|
8250 Kg (18188 lbs)
|
|
|
Tire size/type
|
33*12-20/solid
|
|
|
Volume of hydraulic oil tank
|
110L
|
|
|
Volume of hydraulic system
|
150L
|
|
|
Volume of fuel tank
|
110L
|
|
|
Control voltage
|
12VDC
|
|
|
Engine
|
Perkins
|
|
|
Drive mode
|
4WD*2WS
|
