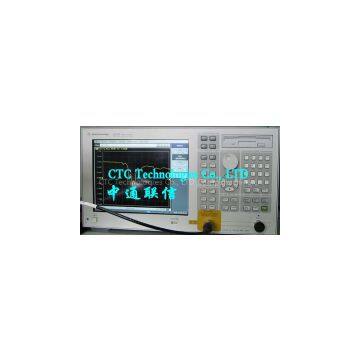

CTC Technology Provide Agilent E5071B

AgilentE5071B

300kHz to 8.5GHz ENA Series Vector Network Analyzer.
10.4 inch LCD, touch screen, built-in Microsoft Visual Basic for Application
(VBA), and 2 and 4-port electronic calibration (Ecal). Multi-port
measurement capabilities. Built in handler IO, LAN, USB, and GPIB.
Fixture simulator. 9 measurement channels; Simultaneous 4-port
measurement. 2, 3, or 4 port integrated S-parameter test set (depending on
option). Sweep speed 12.8uS per point. Type-N (female) 50ohm connector.

The HP / Agilent E5071B ENA RF NetworkAnalyzer dramatically improves measurement accuracy and responds to current andfuture test needs. Because it performs up to 125 dB ² wide dynamicrange at 10 Hz IFBW, the sweep speed can be faster at the required dynamicrange. The trace noise is lowered to 0.001 dB rms at 3 kHz IFBW. It deliversaccurate pass band ripple measurement of a filter. The ENAs excellentmeasurement performance improves test quality and repeatability as well as testthroughput, which affect production yield and the overall cost of test.

The HP / Agilent E5071B ENA RF NetworkAnalyzer perform fast and accurate RF component measurements for both R&Devaluations and production testing. The Agilent E5071B (300 kHz to 8.5 GHz)model offers integrated 2, 3, or 4 test ports, and enable various componentmeasurements from 2-port filters to multiport devices like duplexers andcouplers. The ENA offers built-in balanced measurements, matching circuitsimulation, and port characteristic impedance conversion. In addition, the ENAprovides frequency-offset and harmonics measurement capabilities. Thesefunctions increase engineering efficiency by delivering fast and accuratemeasurement results for the most advanced RF components, such as balanced SAWfilters, differential amplifiers, mixers, converters, and front-end modules.
