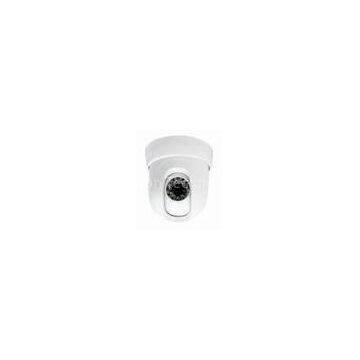

500TVL WDR PTZ CCTV Camera RS-485 With 128 Preset And OSD Menu

Name: 500TVL WDR PTZ CCTV Camera RS-485 With 128 Preset And OSD Menu
Brand: Hans
SKU: 148416452
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Hans

Place of Origin:

China

Model Number:

Shenzhen Hans Vision Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Hans

Place of Origin China

Delivery Time:7-15 working days
Certification:CE , RoHS , OEM

500TVL WDR PTZ CCTV Camera RS-485 With 128 Preset And OSD Menu Specifications:

ptz cctv camera

1.manufacturer of Mini Dome Camera
2.ptz camera
3.Embeded
4.CE ROHS FCC cetificate

Feature:

1)3\" Super Mini Configuration,Vandalproof;

2)Superhigh Resulotion,X128 WDR,ICR Switch;

3)Pan 360° Tilt 180° (Auto-Flip), Max 360°/sec;

4)Built-in 10*10X Zoom with invert image;

5)4 Pattern, 8 Swing, 8 Group, Power-off Protection;

6)RS-485, PELCO-D/P Protocol;

7)128 Preset, OSD Menu;

8)4 Ch Alarm In,1 Ch Alarm Out(Optional);

Technical Specs:

Image device	Sony 1/4\" Interline Transfer CCD
Signal System	NTSC 2:1 Interleaved	PAL 2:1 Interleaved
Max.Pixels	811(H)*508(V) 410K NTSC	795(H)*596(V) 470K PAL
Effective Pixels	768(H) x 494(V) 380K NTSC	752(H) * 582(V) 440K PAL
Scan Frequency	H: 15.625 KHz/V : 50.00 Hz	H:15.734 KHz/V:59.94 Hz
H.Resolution	500TV Lines (Color),570TV Lines (B/W)
S/N Ratio	50 dB (AGC OFF)
Zoom	100x(10x Optical zoom,10x Digital Zoom)
Focus Length	F1.8 f=3.8 to 38mm
Day&Night	Auto/Day/Night(IR Cut Filter)
Min Illumination	Color 0.7Lux/ 0.02Lux(B/W) 50 IRE
White Balance	Auto/Manual(Red&Blue Gain Adjustable)
AGC	Normal/High/Off
BLC	Low/Middle/High/Off
Flickerless(selectable)	On/Off(1/100)	On/Off(1/120)
Focus	Auto/Manual/Semi-Auto
Shutter speed	X128 ~ 1/120000 sec
Iris	Auto/Manual
SSNR	Low/Middle/High/Off
