Home > Products > PTZ CCTV Camera > 700TVL Outdoor Security IR PTZ CCTV Camera Waterproof , 10x Optical Zoom

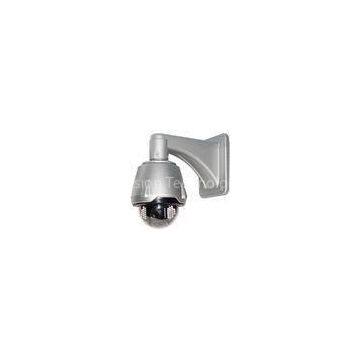

700TVL Outdoor Security IR PTZ CCTV Camera Waterproof , 10x Optical Zoom

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Hans

Place of Origin

China

Product Description

Delivery Time:7-15 working days
Certification:CE , RoHS , OEM

700TVL Outdoor Security IR PTZ CCTV Camera Waterproof , 10x Optical Zoom Specifications: Outdoor ir ip PTZ camera
1.Support IP Module inside
2.IR distance:120-150m
3.OSD menu, AUTO-ID;pelco-D/P
4.4ch alarm in,

Outdoor Waterproof 700TVL 10x Optical Zoom Mini IR Speed Dome IP PTZ Camera

Features:

PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor;

IR distance 50M; Multiple languages for OSD menu, English, Spanish, French etc.;

Support ambient light detection, IR illumination on 0-25 grades selectable;

32 bit CPU, slowest speed rate 0.02°/s, smooth and even motion;

Time scheduling function;

Dome ID, baud rate, communication protocol can be set via the controller;

Supported Protocols: Pelco-D/P; Others on special request;

4.5\" total metal body construction, waterproof IP66;

IP network RJ45 interface, ONVIF supported

Video recording could be converted to be avi.

support Iphone and android phone watch.

video compression standard	H.264 HP;MPEG4 SP and MJPEG
Resolution	PAL:704576;704288;352288;176144(QCIF) NTSC:704480;704240;352240;176120(QCIF)
Image device	EFFIO Sony 1/3”CCD
Scan Frequency	H: 15.625 KHz/V : 50.00 Hz
H.Resolution	650TV Lines (Color),700TV Lines (B/W)
S/N Ratio	48 dB (AGC OFF)
Zoom	10x Optical zoom
Focus Length	F1.7(W)~3.7(T)f=4.0~40mm
Day&Night	Auto/Day/Night
Tilt Rotation Range	93º
Auto Flip	Horizontal 180°, Vertical 93°
Ratio Speed	Support
Auto Control IR LED	PWM
360° Scan	1-9 grades setting available
A-B Scan	User programmable
A-B Scan Speed	1-9 grades setting available
PWR on Action	Memory/Pattern 1/Tour 1/360 scan/AB scan/Preset 1-8/None
Park Time	1-60mins setting available
Dwell Preset	5-60s interval available
Preset Points	220
Go to Preset Speed	200°/s
Guard Tours	4 groups
Guard Points	Max.16 points, dwell time user selectable
Pattern Scan	4 pcs
Pattern Scan Record	Max.15 minutes, max.512 commands
3D Location	Support (DH-SD1)
OSD Menu
