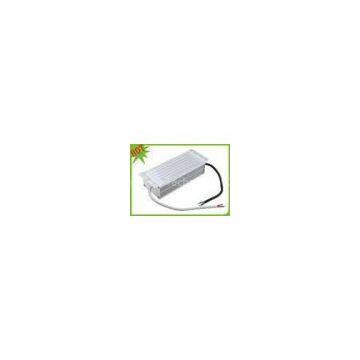

Single output Waterproof LED power supply 24V2.5A 60W

Delivery Time:1-10 working days (depends on quantity)
Certification:CE RoHs FCC

Quick Detail:

○ 9 years production experience in power supply.

○ 3 senior engineers with over 15 years experience in this field

○ Low power consumption, high reliability
○ Protections: Short circuit/Over load/Over voltage

○ 100% full loading burn-in test

○ All products have been checked and packaged in good condition before dispatch

Description:

60W 24V2.5A POWER SUPPLY

Universal AC Input (full range)

Dimension: 150*50*30mm (L\'W\'H\')

Cooling by free air convection

Applications:

○ Digital and electronic products, industrail equipment.

○ Fiber transceivers, game player, LED, CCTV camera;

○ Communications and security products;

○ LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

○ Household Electrical Appliance,

○ Mini PC / PDA / Laptop / Notebook products, etc.

Specifications:

Model number	FS-60-24
Input	Input voltage	AC90-264V, 50/60Hz
Output	Max power	60W
Waterproof grade	IP67
Output voltage	DC 24V  + / - 5%
Ripple wave	(mVp-p):  <10%
Temperature coefficient	±0.02%/°C
Setup rise hold up time	200s  100s  30s
Protection	Overload protection	105%-150%vA,automatic recovery
Short-circuit protection	Once short-circuit protection, automatic recovery
Over-voltage protection	115~135%
Insulation	Withstand Voltage	Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ
Environment	Working temperature	-10°C-+50°C,10%-90%RH
Store temperature	-20°C~ +85°C,10%-90%RH
Size	Size	150*50*30mm
Net weight	0.5kg

Competitive Advantage:

1. Factory direct sales: Wholesale discounts & good quality

2. Timely delivery : 1-7 business days (depends on quantity)

3. OEM and ODM Service.

4. Certification: Our products are mostly certified by CE, LVD, RoHs, EMC, FCC

5. Good service: Your inquiry related to our products or prices will be replied in 24hours. Well-trained and experienced staffs to answer all your enquires in fluent English

Tag: LED power supply, Switching power supply, Constant Voltage Power Supply
