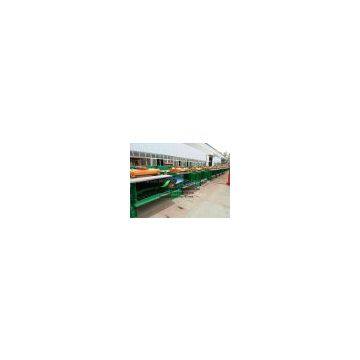

Help CenterFrequency-Conversion Type Balanced Elliptical Shale Shaker
Related Products
I. Use
1. Used for the first stage separation equipment of the solid control system which is used in drilling and horizontal wells.
2. Used for solid liquid separation and classification of various mining area and coal Industry.
3. Used for chemical and food processing project.
4. Used for other solid liquid separation project and environmental protection system.
II. Characteristics
1. Adopt translation ellipse motion trace to make screening and desanding better and a longer service life of screen with no sand accumulating in any case.
2. Process load 100m3/h, viscosity 54, 180 single flat screens.
3. Adopt electrohydraulic mode to perform stepless dynamic positioning of screen box dip angle.
4. Big screening surface and screen box for three liquid bath, sieving area is increased 33%.
5. Adopt Frequency-Conversion technique to improve G force of shaker to make it reach 8.13.
6. Allocate quick holdback gear and mud splash preventer to screen.
|
Name |
Parameters |
|
Type |
RSD2008-P/B |
|
motion trace |
Balanced elliptical orbit |
|
Screen size(mm) |
1133×780×4 1053×700×4 |
|
Sieving area (m2) |
3.52(flat screen)5.6(wave screen) |
|
Screen number (mesh) |
60 ~ 360 |
|
Amplitude (mm) |
A≥6(long axis) A≥3(short axis) |
|
G force |
6.3~8.13(dynamic variation)(variable frequency) |
|
Process load(L/S) |
Single-shaker with 180 meshes, viscosity 54, the capacity can be up to 100 100m3 / h. Over 200 screens can be installed for three shakers. |
|
Vibration attenuation mode |
Rubber shears spring |
|
Screen box dip adjusting means and adjustable angle |
Stepless electrical control+3°~ +8° |
|
Screen box protection |
Rapid sludge splash preventing unit |
|
Screen installation |
Mechanical 180o rotation screen fast tensioned device |
|
Rated voltage, frequency(V,Hz) |
380~460 V(50~60 Hz)variable frequency |
|
Maximum dimensions (mm) |
2830×1680×1250 |
