800 Kg/h Scrap Copper Wire Recycling Machine High Separate Rate

Delivery Time:90 days

800 Kg/h Scrap Copper Wire Recycling Machine High Separate Rate

Cable scrap recycling machine

Quick Detail:

Cable scrap recycling machine:

To recycle scrap wires and cables, reduce the waste, turn scrap cables into money. PLC control. Vibration frequency and transducer control system. The motor of shredder and crusher is Star-delta starting. The shredder can reverse rotating when blocking. When crusher is over-current, the conveyor will automatically stop. There is protection switch when opening crusher. Thermal protection functions of motor. Motor missing phase protection function. Touch screen shows all operation parameters. One button start and stop.

Description:

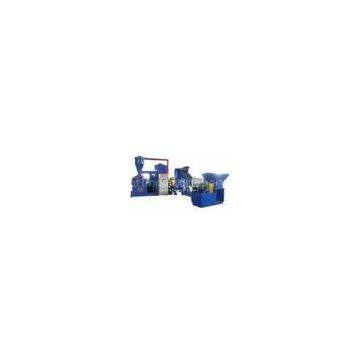

OPTD-800 Cable recycling machine

OPTD-800 split type copper wire crusher machine adopts advanced design, rational structure, electrical controlled by PLC and reliable operation. This machine includes double-shaft shredder, belt conveyor, 2nd crusher, wind-borne feeding, 2 sets of vibrating and choosing separators, 2 sets of gatherers, hydraulic system and electrical control system. After be crushed, it can make sheath and core separated and gathered at different areas of the screen mesh’s surface. With airflow function and screen box straight shock excitation, the sheath and core be separated, and get copper particles, plastic pellets and mixture from different ports. Dust goes to dust gatherer through air flue. The vibrating screen controlled by transducer that can adjust frequency according to different conditions, meanwhile the air value controlled by adjusted valve. All these actions are be controlled by PLC, and the touch screen will show all parameters. This type of machine is easy to operation and maintenance, and the separated precision can reach 98%. It will be good choice for the recycled factory which suitable crushing the wasted cable’s overall size below 20mm and the capacity is 700~800Kg/h.

Applications:

To recycle waste wires and cables, separate outer plastic sheath and inner conductor.

Specifications:

OPTD-800 Cable recycling machine

Type	Double Shaft Shredder	Belt Conveyor	2nd Crusher	Elevator	Vibrating and Choosing Separator	Gatherer	Electrical Control
OPTD—800	Type 600 double shaft shredder. Motor power: 22kw	Type 600 belt conveyor Motor power: 2.2kw	Type 1000 Motor power: 55kw	Wind-borne Motor power: 4kw	Intensely motor power:2.2Kw Blower motor power: 3kw	Blower motor power: 3kw X 2 Gatherer’s vibrated motor power: 90w	PLC control 380—440V 3 phase 50Hz or 60Hz

Competitive Advantage:

What we use for the crusher

1. Motor                                        Siemens

2. Hydraulic station                        Taiwan famous brand

3. Bearing                                      NSK

4. Electrical element                      Schneider

5. Blade material                            H13 Steel
