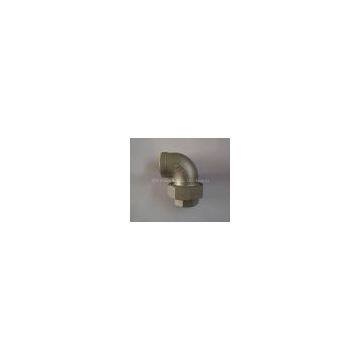

Stainless Steel Elbow Union 90 Deg

Size: 1/8"---4"(DN6-DN100)
Material: ASTM A351, CF8, CF8M, SS304,SS316,1.4404

Design and manufacture Features:
Our fittings are in accordance with ISO 7-1 (ISO 4144 ) in terms of alldimensions.
Investment Casting Bodies. CNC lathes progressing. Top Quality.
Size: 1/8" -- 4" (DN 6-DN100 )
MATERIAL: SS 304/316
TEMPERATURE:
304 and 316 are not recommended for service at temperatures in excess of 800°F(425° C).
WORKING PRESSURE: 150 LB
The 304 and 316 screwed pipe fittings could be used for standard pressureservice as 10.55Kgs/cm² Of water pressure.
TYPES OF THREAD:
DIN2999, BSPT, BS21, ISO228, PT, NPT, G threaded pipe fittings
LIMIT DEVIATION OF UNSPECIFIED TOLERANCE:
Nominal Dimension Limit Deviation:
≤ 3 ± 0.125, >3-6 ± 0.15, >6-10 ± 0.18, >10-18 ± 0.215, >18-30 ±0.26,
>30-50 ± 0.31, >50-80 ± 0.37, >80-120 ± 0.435, >120-180 ±0.5,
>180-250 ± 0.575, >250-315 ± 0.65.
