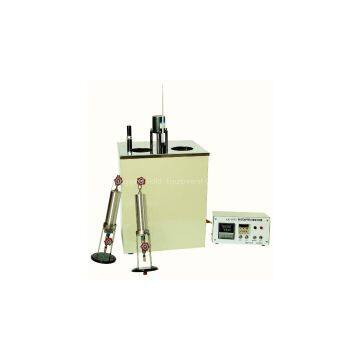

Help CenterASTM D1838 LGP Copper Strip Corrosion Tester
Related Products
-
ASTM D1500 Oil Colorimeter / Color Tester for Petroleum ProductsUS$ 1 - 1MOQ: 1 Piece -
Vacuum Distillation Tester for High Boiling Point Petroleum ProductsUS$ 1 - 1MOQ: 1 Piece
-
Lab Usage Oxygen Bomb CalorimeterUS$ 1 - 1MOQ: 1 Piece
-
ASTM D721 Petroleum Products Wax Content Tester / Wax -in -Oil Tester (GD-3554)US$ 1 - 1MOQ: 1 Piece
-
Fluorescent Indicator Adsorption Method Hydrocarbon Tester of Liquid Petroleum Products (GD-11132)US$ 1 - 1MOQ: 1 Piece
Summary
The instrument is designed and made as per industrial standard of People's Republic of China SH/T0232 Standard Test Method for Copper Strip Corrosion of Liquefied Petroleum Gas. It is used to determine the corrosion of liquefied petroleum gas to copper strip.
I. Main technical features
1. Desktop structure. Motor stirring. Digital temperature controller. The temperature of water bath is uniform and control precision is high.
2. Test bombs are made of stainless steel material. Good pressure and corrosion resistance.
3. All parts complete. Equipped with imported standard color board and copper strips. Easy to operate.
II. Main technical specifications
1. Power supply： AC220V±10%, 50Hz
2. Temperature range： Ambient to 100.0℃
3. Temperature control accuracy： ±0.5℃
4. Temperature sensor： RTD, Pt100
5. Heating power： Two grades，heating power of temperature control is 600W, auxiliary heating power is 1000W.
6. Rotating rate of stirring motor：1400RPM
7. Time-delay range： 0.01s ～ 99h 99min
8. Sample testing positions： 2 positions
9. Ambient temperature： -10℃~35℃
10. Relative humidity： ≤85%
11. Maximum power consumption： 1700 W
