HX675 Hydraulic Comparator
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- hairspring
- Hot Sale High Tension Industrial Wire From Professional Supplier
- China Workplace Safety Supplies Specialized Alloy Wire With Various Types
- China Wholesale Customized Wire Electrode With Factories Price
- Various Size of High Strength Metal Wire Electrode From Chinese Wholesaler
- High Quality Alloy Electrode Wire According to Customers' Requirement
Product Description
Product Description

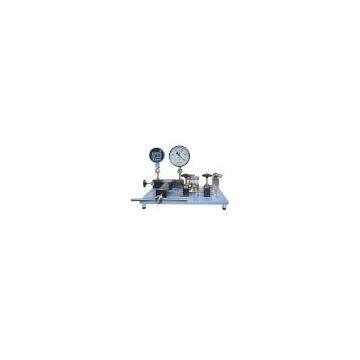

HX675 Hydraulic Comparator is composed of hand pump, lead screw, relieve valve, shut off valve, booster valve, oil tank and output interface. It provides required pressure with the whole system by hand pump and uses the fine adjustment valve. It is easy to operate and labor saving according to the hydraulic drive principle of big plunger pushing the small one.
Functions
HX675 can supply pressure for calibrating pressure gauges, such as pressure (different pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauges.
Characteristics
b></big><big><b></b></big>;mso-fareast-theme-font:minor-fareast;mso-hansi-theme-font:
minor-fareast\">◆ It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
◆ Stainless steel and easy operation
◆ It calibrates 1 piece of gauge at one time
Technology Specification
◆ Pressure Range: (0~1600) bar
◆ Pressure Media: Diisooctyl sebacate
◆ Output Interface: M20×1.5 Female
◆ Overall Dimension (L×W×H): 570mm×490mm×195mm
◆ Weight: 25Kg
