Mud Mixing Hopper Mud Gun

Mud Mixing Hopper Mud Gun photo-1
Mud Mixing Hopper Mud Gun photo-2
Mud Mixing Hopper Mud Gun photo-3
US$ 18500 - 18500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BETTER
Place of Origin:
China
Model Number:
MH-6
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name BETTER
Place of Origin China
Model Number MH-6

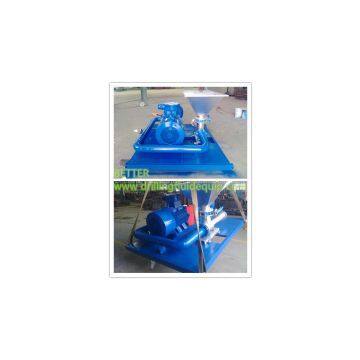

Jet-Venturi Mud Hopper

We manufacture 4” and 6” mud mixing hoppers with standard flow rates from 130 GPM to 830 GPM, primarily used for shearing hard to mix additives, and adjust the drilling fluid’s density, viscosity by adding chemical additives;

Working Pressure 0.25~0.4Mpa

Size: 6” x 6”, 6” x 5”, 4” x 4”

Hoppe Diameter: 750 x 750 mm & 500 x 500mm

6” mud hopper with optional venture

BETTER Mud Hopper has no moving parts, 4 major components of Hopper, Valve, Jet nozzle, and Venturi pipe.

To combine with centrifugal sand pump, manifolds, and butterfly valve, flexible couplings and base to be Jet Mud Mixer; Single or double jet mud mixer is both available

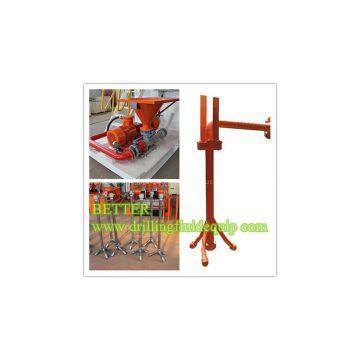

Mud Gun

To clean the tank wall and corner to prevent the solids sediment in the mud tank;

To work combining with mud agitator and centrifugal sand pump or shear pump together to finish the agitation process;

2” and 3” inlet pipe for optional, it depends on the tank size;

Low pressure, middle pressure, high pressure are classified for optional;

Good sealing and wear-resisting replaceable nozzle, regular cleaning the mud gun nozzle to prevent blockage;

Simple structure design, easy operation and better treatment efficiency.
