Certification:CE

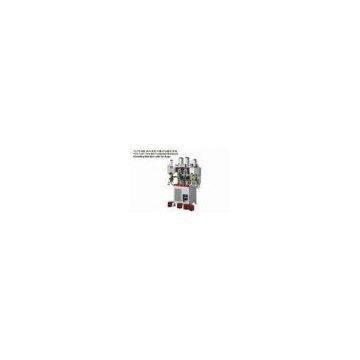

YL-75 2HC Two Hot & Two Cold Computer Back-part Moulding Machine with air bags
Quick Detail:
Product name: Counter moulding machine, back-part moulding machine, heel moulding machine Machine color: Red and white Machine function: counter moulding Type: Hydraulic Computerized: Yes Technology: Italy
Two Hot / Two Cold Computer Back-part Moulding Machine , N.W 500 kg
Description:
YL-75 2HC Two Hot & Two Cold Computer Back-part Moulding Machine with air bags is designed for attaching, forming for back part of shoes upper, to make them forming in the right way; from the front side, we can see a center station with one cold mould and two rubber mould pads, at the both sides of center station, there is a cold mould and a rubber mould pad. The mold is heated by temperature controlling system. It makes better adhesive for hot-melt and upper heel part. In the center of machine, there is a control panel with some switches, they are black buttons for start working; red buttons for rapidly stop. The main switch ON/OFF, shows lights and switches of chilling system;
On the top of machine, there is a program keyboard with display, we can see the working status of machine and every temperature station; The machine also has equipped with four cylinders and different adjusting hand wheel for setting the position of mould pad; All electric parts include, fuse, electronic block, transformer etc. They are in the control panel box which is in front of the machine.
Technical Features:
1. Used ALFA technology;
2. Temperature controlled by PLC system, which made the machine more automatic and security.;
3. Save labor with airbag molds, which loading and unloading quick and easy;
4. This machine is applied to forming operation on heels of leather shoes;
5. Use of environmentally friendly refrigeration system, cooling speed, freezing temperatures up to -30 °C to -40 °C;
6. Special design ensures easy maintenance and low breakdown rate;
7. Hot up mould is made of silicon rubber, independent temperature control accelerate the activation of counter, the aluminum mold can adjust temperature by itself, it is suitable for all kinds of materials. If the most perfect moulding performance is required, the moulds can be produced according to customer\'s last.
Specifications:
|
Model No.: |
YL-75 2HC |
|
Product name: |
Counter moulding machine |
|
Hot molds: |
Two |
|
Cold molds: |
Two |
|
Voltage: |
220V |
|
Power: |
2.7KW |
|
Air pressure: |
5~7kg/cm2 |
|
Function: |
For counter shaping |
|
Automatic Grade: |
Semi-automatic |
|
Color: |
Red & white, White, Yellow |
|
Dimensions: |
1300 × 900 × 1980 mm |
|
Packing size: |
1400 x 1000 x 2080 mm |
|
Type: |
Moulding machine |
|
N.W: |
500 kg |
|
G.W: |
550 kg |
|
Capacity: |
1200prs/8hrs |
|
Condition: |
New |
|
Guarantee: |
1 year |
Application:
It applies to all kinds of shoes type, including working shoes, sports shoes, safety shoes, etc. It doesn`t require to change outer cold mold with airbags to press.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
