Home > Products > metal push button switch > 2016 Hot Sale 19mm IP67 Waterproof Metal Push Button Switch with LED 1NO1NC,2NO2NC,momentary/self-locking factory China
2016 Hot Sale 19mm IP67 Waterproof Metal Push Button Switch with LED 1NO1NC,2NO2NC,momentary/self-locking factory China
USD $3. - $3.5
/ Piece
100 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2016 Hot Sale 12mm B series metal push button switch with 2 pcs quick-connected terminals
-
2016 Hot Sale 12mm Metal Push Button Switch with Waterproof and Momentary Function Manufacture China
-
2016 hot sale 16mm waterproof metal push button switch manufacture China
-
2016 hot sale 19mm Waterproof Metal Push Button Switch with Momentary/Locked 1NO1NC,2NO2NC with/without LED
-
2016 Hot Sale 19mm IP67 Waterproof Metal Push Button Switch with illuminated,LED indicator with Momentary on/Locked Manufacture China
Product Details
| Place of Origin | China | |
| Model Number | 19MM-B |
Product Description

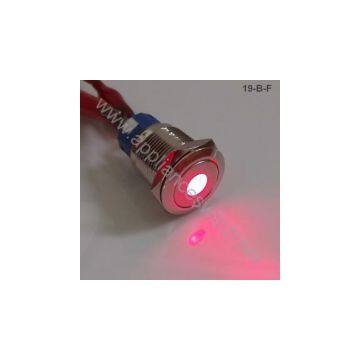

Model: 2016 Hot Sale 19mm-B IP67 Waterproof Metal Push Button Switch with LED with Momentary on/Locked manufacturer China
Mounting hole: 19mm diameter |
| Operation type: Momentary on or Self-Locked |
| Contact Configuration:1NO1NC,2NO2NC |
| Front Shape: Flat Round/Ball Round/High flat Round |
| Terminal Type: Solder terminals |
| Max. Switch Rating: 5A/250VAC |
| Contact Resistance: <=50mohm |
| Insulation Resistance: >=1000mohm |
| Dielectric Strengh: 2000VAC |
| Operation Temp.: -20- +55C |
| Mechanical Life: 1,000, 000cycles |
| Electrical Life: 50, 000cycles |
| Panel Thickness: 1-10mm |
| Torque: 5-14Nm |
| Operation Pressure: About 3-5N |
| Operation Travel: About 2.0mm |
| IP Degree: IP67,IK09 |
| Contact Material: Silver Alloy |
| Crust Material: Nickel Plated Brass/Stainless Steel |
| Button Material: Nickel Plated Brass/Stainless Steel |
| Body Material: Nickel Plated Brass/Stainless Steel |
| Base Material: PBT |
