NC Double Head Precision Cutting Saw

NC Double Head Precision Cutting Saw thumbnail-1
NC Double Head Precision Cutting Saw thumbnail-2
NC Double Head Precision Cutting Saw thumbnail-3
NC Double Head Precision Cutting Saw photo-1
NC Double Head Precision Cutting Saw photo-2

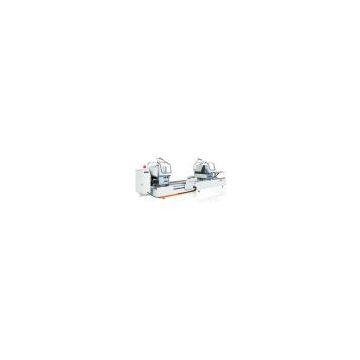

NC Double Head Precision Cutting Saw photo-3
US$ 15000 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SHARE
Place of Origin:
China
Model Number:
LJZ2-G500
Contact Supplier Request Quote Chat Now
Chian Share Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHARE
Place of Origin China
Model Number LJZ2-G500

  NC double head precision cutting saw
Performance features:

1.The body adopts reinforced structural steel design to ensure good rigidity, difficult in deformation after the aging treatment

2. Large in machining range, used in cutting and blanking of aluminum profiles and curtain wall profiles

3. High in machining efficiency; suitable for scaled production

4. CNC  technology is adopted mated with Germany Siemens motor to realize auto sizing blanking

5. High quality aluminum product dedicated hard alloy saw blade to ensure cutting precision

6. The saw blade feeding system adopts air-hydraulic buffering cylinder to ensure uniform feeding and even movement

7.The feeding mechanism adopts imported flat way and linear bearing pair, high in movement precision and accurate in positioning

8. The mechanical head realizes auto swivel and bilateral positioning and clamping, accurate and stable

9Dedicated subsection and arcus difference compensation function to ensure precise blanking

10. Dedicated full-auto corner saw function

11.The circuit system is equipped with motor phase sequence protector to increase the system safety.


  NC double head precision cutting saw
Technical parameters:

Power supply---------------------------------------     380  50HZ
Power of motor--------------------------   2×2.2KW+1.5KW

Speed: ----------------------------------------------  2800/MIN

Air source pressure -----------------------------     0.5-0.8MPA
Air consumption ---------------------------------------   60L/MIN

Cutting length: --------------------------------- 400-4200MM

Cutting width: -------------------------------------- Max.135MM

Cutting heigt: ---------------------------------------- Max.300MM

Cutting angle: ---------------------------------------- 90\\\\45

Feedrate: ------------------------- Stepless speed 0-3M/MIN
