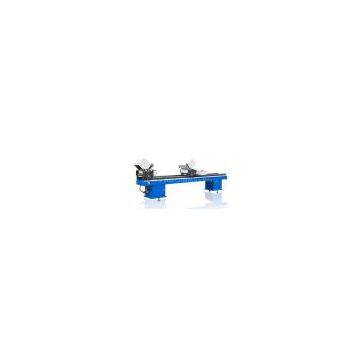

High grade NC double head precision cutting saw (stepping)
Performance features:
1.Large in machining range, used in cutting and blanking of aluminum profiles and curtain wall profiles
2.High in machining efficiency; suitable for scaled production
3.CNC technology is adopted to realize auto sizing blanking
4.High quality aluminum product dedicated hard alloy saw blade to ensure cutting precision
5. The saw blade feeding system adopts air-hydraulic buffering cylinder to ensure uniform feeding and even movement
6 The feeding mechanism adopts imported flat way and linear bearing pair, high in movement precision and accurate in positioning
7. The mechanical head realizes auto swivel and bilateral positioning and clamping, accurate and stable
8. Dedicated subsection and arcus difference compensation function to ensure precise blanking
9. Dedicated full-auto corner saw function
High grade NC double head precision cutting saw (stepping)
Technical parameters:
Power supply------------------------------------------------------- 380 50HZ
Power of motor------------------------------------------------------ 2×2.2KW+1.5KW
Speed: ------------------------------------------------------- 2800/MIN
Air source pressure --------------------------------------------- 0.5-0.8MPA
Air consumption ---------------------------------------------------- 60L/MIN
Cutting length: ------------------------------------------------------- 400-4200MM
Cutting width: ------------------------------------------------------- Max.135MM
Cutting height: ------------------------------------------------------- Max.300MM
Cutting angle: ------------------------------------------------------- 90\\45
Feedrate: ------------------------------------------------------- Stepless speed 0-3M/MIN
