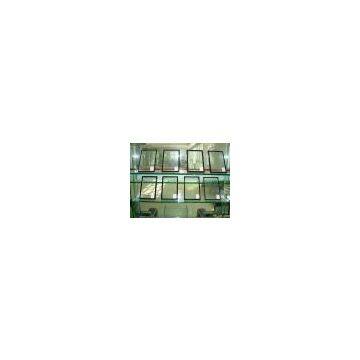

High Configuration High Insulating Glass Production Line

high configuration high insulating glass production line
Performance features:

Full range computer automatic control system, capable of producing unequal insulating glass, double glazing glass, filming hollow, steel hollow glass wares

Film of automatic identification coated glass and LOW-E glass (optional)

Both cleaning machine and waterway adopt stainless steel and corrosion resistant material, durable in usage

Auto design flush dry section transport mechanism, suitable to flush 3-12 glass

Exclusively adopt multi-section frequency converter control, equipment multispeed operation optimization function, capable of realizing the motion of various glass automatically


high configuration high insulating glass production line
advantages:

The glass can be flushed continuously; the machine will classify the first and second glass automatically

Delivery parts of the product line adopt the shutdown buffering function to avoid the impact between the glass and the equipment localization, as well as reduce the abrasion of the glass to the feed wheel effectively.

high configuration high insulating glass production line
Technical parameters

Power  Supply                         380V  50Hz
Input Power                             23Kw
Max. glass size                    1800*2400mm
Min. glass size                       400*450mm
Glass thickness                     3-12mm
Insulating glass thickness  40mm
Washing speed                    3-12m/min
Conveying speed                  32m/min
Outside dimension              20800*2600*2900mm
Weight                                3500Kg
