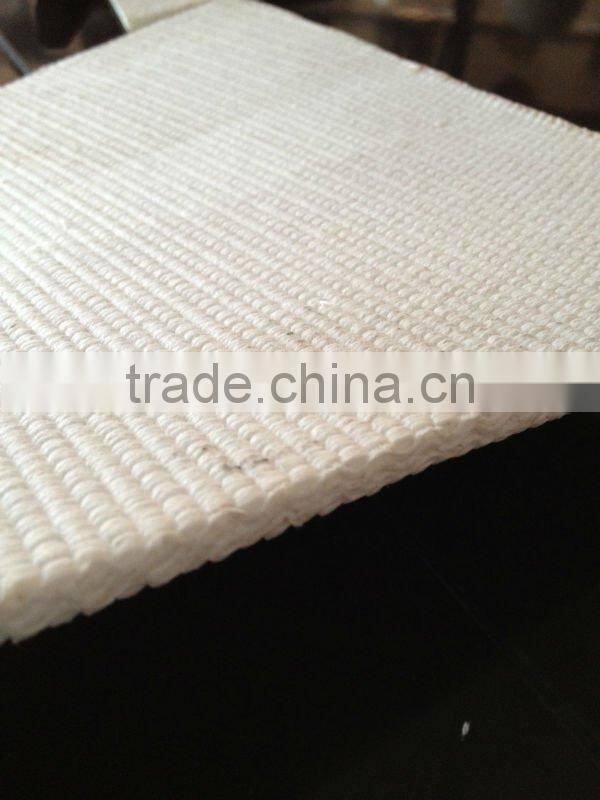

Polyester Conveyor Belt

        Air Slide Pneumatic Conveyor Systems consist of Air feed unit like blower, metallic bellow or compressor which are the sources of air stream supply; product feed pneumatic conveyor comprising two pressurized chambers or channels, positioned one upon another at their open trough ends with the Air Slide Fabric separating them. The pressurized air is fed into the bottom chamber and permeates through the fabric entering the top chamber where it picks up the product being feed into it at the upper gradient end transports it to the collection point at the lower gradient end.

There is an air separation arrangement at collection point or filter unit, which separates the solid powder product stream from the air stream. This may be a cyclone separator, bag house filter or precipitator and material product is collected in bin, silo, or hopper either for storage or mixing or blending or if in a finished product stage to the packing plant.

Description

• Air Slide Fabrics produced from 100% Polyester (spun/filament), 100% cotto in widths of 200mm up to 2000mm and thickness in 3.0, 4.0/4.5, 4.8 /5.0, 6.0/6.5/8.0/10/12mm.

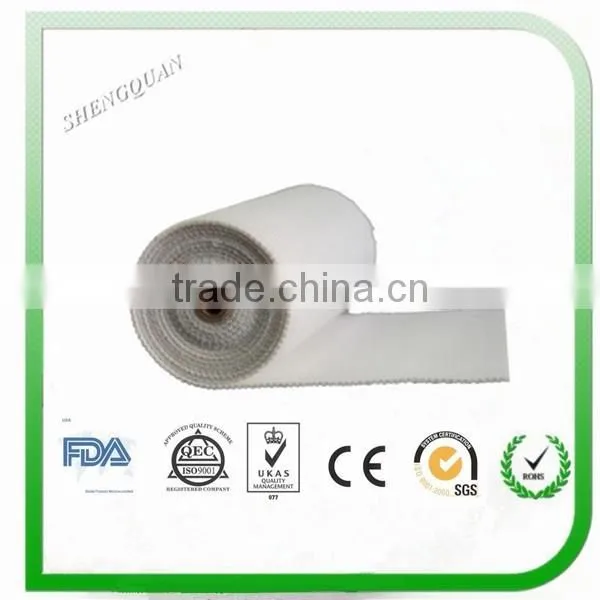

• Available in roll lengths and cut pieces to actual installation size & shape.
• Materials inspected & tested with Test & Guarantee Certificates provided.
• Air Slide Fabrics for all Pneumatic gravity Conveyor System i.e. Air Slide, Fluidor, Fluxo-Channel Fluid Slide, Aeration – Box, Airlift or Aerpole pumps in Sillo, Bin & Hopper.
• For bulk material conveying fine crushed and ground powdered chemical mineral substances used to manufacture cement as well as any other similar powdered products.
• Our “Air Slide Fabrics” have good abrasion resistance offered in 100% Synthetic qualities of polyester to withstand organic and inorganic chemicals, acids, alkalis and oxidizing agents contained in raw mix, clinker and cement.
