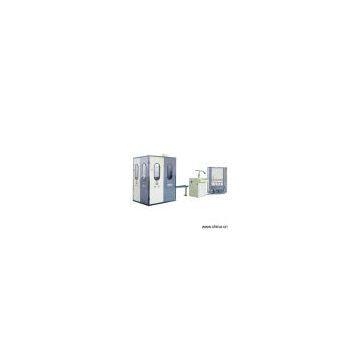

Help CenterSell Automatic Bonnell Coiler
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1983
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Model No.:ZJ-1
Product Origin:China
Brand Name:Yuantian
Price Terms:FOB Nanhai
Payment Terms:
Certification:
Description:Features: 1) Mechanical and simultaneously work systems: wire delivery, spring coiling, spring delivery, knotting, heat-treatment and spring collecting 2) The machine is controlled with PLC and touch screen 3) The production is automatic and needs only one operator 4) Soundproof cabinet can avoid body injury and noise 5) High in capacity and low in labor consumption 6) Power supply: AC 380V, 50Hz 7) Main motor power: 3.0kW 8) Wire gauge: 2.0 - 2.4mm 9) Spring height (5 turns): 110 - 145mm 10) Spring end-coil diameter: 80 - 90mm 11) Capacity: 40 - 60 coils/min 12) Heat treating power: 20kW 13) Wire swift power: 1.51kW 14) Main machine weight: 2,000kg 15) Soundproof cabinet: 1,540 x 1,410 x 1,960mm 16) Wire swift: 1,460 x 1,460 x 1,720mm 17) Electric cabinet: 860 x 760 x 1,060mm
Product Origin:China
Brand Name:Yuantian
Price Terms:FOB Nanhai
Payment Terms:
Certification:
Description:Features: 1) Mechanical and simultaneously work systems: wire delivery, spring coiling, spring delivery, knotting, heat-treatment and spring collecting 2) The machine is controlled with PLC and touch screen 3) The production is automatic and needs only one operator 4) Soundproof cabinet can avoid body injury and noise 5) High in capacity and low in labor consumption 6) Power supply: AC 380V, 50Hz 7) Main motor power: 3.0kW 8) Wire gauge: 2.0 - 2.4mm 9) Spring height (5 turns): 110 - 145mm 10) Spring end-coil diameter: 80 - 90mm 11) Capacity: 40 - 60 coils/min 12) Heat treating power: 20kW 13) Wire swift power: 1.51kW 14) Main machine weight: 2,000kg 15) Soundproof cabinet: 1,540 x 1,410 x 1,960mm 16) Wire swift: 1,460 x 1,460 x 1,720mm 17) Electric cabinet: 860 x 760 x 1,060mm
