Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA

Chengdu A&S Machinery Co., Ltd. Motors Dept.
Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA thumbnail-1
Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA thumbnail-2
Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA thumbnail-3
Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA photo-1
Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA photo-2
Brook Crompton W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex D(e) EEx nA photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Brook Crompton
Place of Origin:
China
Model Number:
W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex d(e) EEx nA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Brook Crompton
Place of Origin China
Model Number W Aluminium W Cast Iron Series 10 Brake Motors Single Phase Ex d(e) EEx nA
Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Model Number:
W-DA63SF,W-DA63SG,W-DA71SG,W-DA71SK,W-DA80ME,W-DA80MJ,
W-DA90SF,W-DA90LM,W-DA100LJ,W-DA112MM,W-DA132SE,
W-DA132SJ,W-DA160MB,W-DA160MJ,W-DA160LR,W-DA180ME,
W-DA200LLF,W-DA200LRF,W-DA63SF,W-DA63SG,W-DA71SJW-DA71SK,
W-DA80ME,W-DA80MG,W-DA90SE,and so on.
Specifications:
W Aluminium
Construction: Aluminium
Frame sizes: 63 to 180
Output: 0.07kW to 22kW
The W aluminium range covers products with outputs from as little
as 0.07kW to 22kW in frame sizes WU-DA63S to WU-DA180L,
in either 2,4,6 or 8 pole speeds.They are widely used in a diverse range of applications from
food and drink to water and sewage. From heating and ventilation
to refrigeration.Some of the benefits of aluminium over cast iron
include high resistance to corrosion and atmospheric attack
(except chlorine, salt-laden or sulphuric acid)
and the fact that aluminium is approximately one third the
weight of cast iron.


Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Model Number:
W-DA63SF,W-DA63SG,W-DA71SG,W-DA71SK,W-DA80ME,
W-DA80MJ,W-DA90SF,W-DA90LM,W-DA100LJ,W-DA112MM,
W-DA132SEW-DA132SJ,W-DA160MB,W-DA160MJ,
W-DA160LR,W-DA180MEW-DA200LLF,W-DA200LRF,W-DA63SF
,W-DA63SG,W-DA71SJW-DA71SK,W-DA80ME,W-DA80MG,
W-DA90SE,W-DA90LKW-DA100LJ,W-DA100LR,W-DA112MR  and so on.
Specifications:
W Cast Iron
Construction: Cast Iron
Frame sizes: 80 to 355
Output: 0.75kW to 400kW
The W cast iron motor range covers products with outputs from as little
as 0.75kW to 400kW in frame sizes 80 to 355L.They are suitable for use within a diverse range of
applications from food and drink to china clay production.
From roller table drives to refrigeration.Many applications
often have adverse operating conditions including repeated
starting and occasional overloading; the W cast iron range
is well suited to these situations.A virtual go anywhere motor,
this cast iron range has a full 3-year guarantee.


Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Model Number:
A-DA56MA,A-DA56MB,A-DA63MA,A-DA63MB,A-DA71MAA-DA71MB,A-DA80MA,A-DA80MB,A-DA90SA,A-DA90LABU-DF280MA
BU-DF315SA BU-DF315MA BU-DF315LA BU-DF315LBBU-DF315LA BU-DF315LB BU-DF355MA BU-DF355M and so on.
Specifications:
Series 10
Construction: Aluminium or Cast Iron
Frame sizes: 56 to 450
Output: 0.09kW to 900kW

A high quality industrial standard range of electric motors
with a Brook Crompton specification suitable for most industrial applications.
The aluminium motors have outputs from 0.09kW to 18.5kW in
frame sizes B-DA56 to A-DA160.
The cast iron range of motors have outputs from 0.09kW to 900kW in
frame sizes B-DF71M to BU-DF450, in either 2,4,6 or 8 pole speeds.
Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Model Number:W-DA56-B,W-DA56-B,W-DA56-B,W-DA56-E,W-DA145T-M,W-DA182T-M,W-DA184T-S,W-DA213T-JW-DA215T-M,W-DA254T-L,W-DA256T-T,W-DA284TS-FW-DA56-B,W-DA56-B,W-DA56-B,W-DA56-E,W-DA143T-EW-DA56-G,W-DA56-M,W-DA143T-G,W-DA145T-MW-DA182T-M,W-DA184T-S,W-DA213T-J,W-DA215T-RW-DA254T-E,W-DA256T-M,W-DA284T-F,W-DA286T-M and so on.
Specifications:

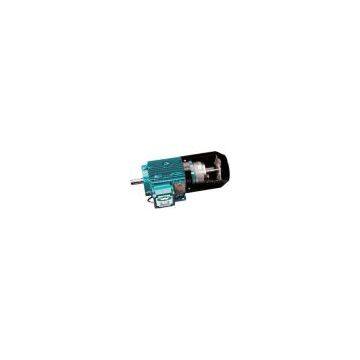

Brake Motors
Construction: Aluminium or Cast Iron
Frame sizes: 63 to 355
Output: 0.07kW to 400kW
Brook Crompton offers the most comprehensive range of
brake motors with highly competitive delivery times,
due in part to its innovative brake kit concept available on W motors.


Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Models:Brook Crompton Single Phase 2-EDA71MG to 2-TDA90LS

Specifications:
Single Phase
Construction: Aluminium
Frame sizes:
71 to 90 (Capacitor Start / Induction Run)
71 to 100L (Capacitor Start / Capacitor Run)
63 to 90L (Permanent Capacitor)
Outputs:
0.12kW to 1.5kW (Capacitor Start / Induction Run)
0.18kW to 3.0kW (Capacitor Start / Capacitor Run)
0.09kW to 2.2kW (Permanent Capacitor)
Single phase motors are used primarily in small workshops and farms
with a domestic supply. Some industrial equipment are specifically
for use with a single phase electricity supply, such as fans,
blowers, centrifugal pumps and high pressure washers.
Dependent on the application we are able to offer different
types of single phase motors.


Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Model Number:W-EF90SG,W-EF90SG,W-EF90LM,W-EF100LR,W-EF112MG
W-EF132SF,W-EF132SJ,W-EF160MF,W-EF160MJ,W-EF160LR,W-EF180ML
W-UEF200LN,W-EF200LN,W-UEF200LN,W-EF200LN and so on.
Specifications:
Ex d(e)
Construction: Cast Iron
Frame sizes: 90 to 315
Output: 0.37kW to 315kW
The Ex d(e) range of flameproof cast iron motors cover outputs from
0.37kW to 200kW in frame sizes W-EF90 to W-EF315,
in 2, 4, 6, & 8 pole speeds. ATEX approved by Baseefa.
Quick Details:
Brand Name: Brook Crompton
Place of Origin:British
Model Number:W-DF80M
W-DF90S,W-DF90L,W-DF100LW-DF112M,W-DF132S,W-DF132M,
W-DF160M,W-DF160L,W-DF180M,W-DF180L,W-UDF200LX,W-UDF225S,
W-UDF225M,W-UDF250MEW-UDF280SE,W-UDF280ME,W-UDF315SE,
W-UDF315ME,W-UDF315M,W-UDF315LW-UDF355S,W-UDF355M,
W-UDF355L and so on.
Specifications:
EEx nA
Construction: Aluminium or Cast Iron
Frame sizes: 63 to 355
Output: 0.07kW to 400kW
The W EEx nA non-sparking range of motors covers products with
outputs from 0.18kW to 400kW in cast iron frame sizes W-DF80M
to W-DF355L, in either 2,4,6 or 8 pole speeds
(also available in aluminum from 71 to 180 frames).
All relevant products fully comply with the requirements of ATEX.
