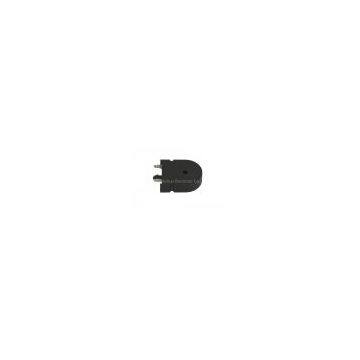

Help CenterPiezo Buzzer(External Drive Type) Pp-2220h7tB
Related Products
-
Piezo Buzzer(External Drive Type) Pp-2220NegotiableMOQ: 1 Piece -
Piezo Buzzer(External Drive Type) PP-10LNegotiableMOQ: 1 Piece
-
Piezo Buzzer(External Drive Type) PP-12LNegotiableMOQ: 1 Piece
-
Piezo Buzzer(External Drive Type) PP-13LNegotiableMOQ: 1 Piece
-
Piezo Buzzer(External Drive Type) PP-1240H5ANegotiableMOQ: 1 Piece
Detailed Product Description
Product Category: Piezo Transducer Curve
Picture: Frequency Response Curve tested by B&k
Specification
|
Type |
Unit |
PP-2220H7TB |
|
Operating Voltage |
v |
Max 25Vp-p |
|
Rated Current(max) |
mA |
3mA (Max) |
|
Sound output at 10cm |
dB |
Min 80dB(Typ.)at 5Vp-p,2 khz |
|
Rate Frequency |
Hz |
2000 |
|
Capacitance |
pF |
25000±30% |
|
Operating temperature |
℃ |
-20~+60 |
|
Storage Temperature |
℃ |
-30~+70 |
|
Weight |
g |
0.5 |
|
Housing material |
ABS |
|
|
Packing Condition |
2000pcs/box |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
Dimension(Unit: mm) Tolerance: ±0.2mm
