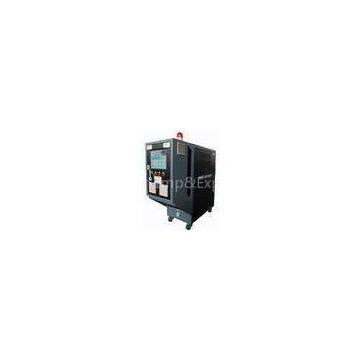

High Temp. AEOT-40-60 Mold Temperature Control Unit With 3N-380-50HZ for Injection Machine

Name: High Temp. AEOT-40-60 Mold Temperature Control Unit With 3N-380-50HZ for Injection Machine
Brand: AODE
SKU: 148073728
Availability: InStock

Suzhou Honggan Imp&Exp Co.,Ltd

High Temp. AEOT-40-60 Mold Temperature Control Unit With 3N-380-50HZ for Injection Machine thumbnail-1

High Temp. AEOT-40-60 Mold Temperature Control Unit With 3N-380-50HZ for Injection Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

AODE

Place of Origin:

China

Model Number:

AEOT-40-60

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name AODE

Place of Origin China

Model Number AEOT-40-60

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

High Temp. AEOT-40-60 Mold Temperature Control Unit With 3N-380-50HZ for Injection Machine

AEOT-40-60 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type TCU circulate high temperature heat transfer fluid through the process application for temperature control. AEOT series MTC offer the range of temperature control from 25°C to 300 °C.

SAFETY PROTECTIONS:

No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.

SPECIFICATION DETAILS:

No.	Part	Specification	Data
1		model	AEOT-40-60
2		power supply	3N-380-50HZ
3		Hot medium	oil
4		control mode	PC board Self - optimized microprocessor
5		accuracy of temp. control	PID±1℃
6		Max. temperature	300℃
7		Min. temperature	25℃
8		heating power	60KW(adjustable)
9		heat exchange area	0.1M2
10	Pump	model	SAP50-32-160
power	3KW
lift	30M
flow	12.5M3/hr
11		heating method	Direct heating(Indirect cooling)
12	Pipeline	hot medium inlet/outlet	DN32(adjustable)
cooling water inlet/outlet	DN15(adjustable)
drain oil port	DN15(adjustable)
13	Temp. Controller	model	P6100(WEST)
modulating action	Dual PID control of heating & cooling
Temp. interaction stick	K- thermocouple
display status	Respectively display set point & real point
output select	SSR output
14
