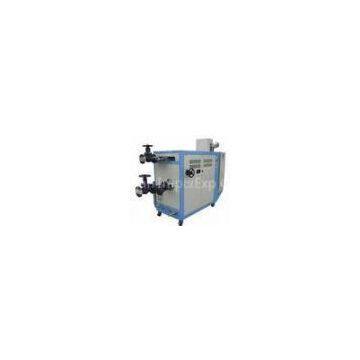

18KW Adjustable Industrial Pumping Oil Circulation Mold Temperature Controller for Compression Casting
ADDC-18 Mold Temperature Control Units(MTC) are specially custome-designed for the temperature control of compression casting. It has lots of optional fuctions and multi safty protections. The heating power is 18KW and adjustable, SPECK high-temperature magnetic oil pump is specially selected for this series.0.1M2 Plate exchanger is available for process requires Heating And Cooling. This model belong to single-circuit temperature control, It offer the temperature range from 25°C to 350 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
ADDC-18 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
oil |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
350℃ |
|
|
7 |
Min. temperature |
25℃ |
|
|
8 |
heating power |
18KW(adjustable) |
|
|
9 |
heat exchange area |
0.1M2 |
|
|
10 |
Pump |
model |
TOE/NPY2251 |
|
power |
0.5KW |
||
|
lift |
60M |
||
|
flow |
35L/min |
||
|
11 |
heating method |
Direct heating(Indirect cooling) |
|
|
12 |
Pipeline |
hot medium inlet/outlet |
DN15(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
13 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display setpoint & real point |
||
|
output select |
