1,horizontal double-acting reciprocating duplex piston
2,two optional cylinder liners,diameters

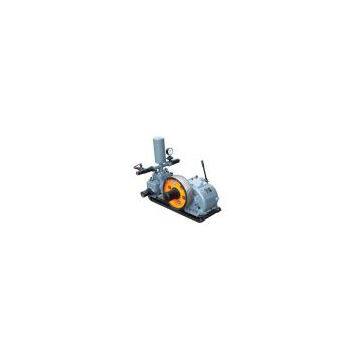

BW200 Mud Pump for drill rig:
BW-200 mud pump is a horizontal double-acting reciprocating duplex piston pump. It is mainly used for feeding flushing fluid to well drilling in core drilling process. It is lightweight, compact and is more suitable used in geological prospect.
To meet diamond drilling, BW-200 mud pump is fixed two-kind-diameter cylinder liner-Φ80mm and Φ65mm. When the hole depth is 600m, we can use cylinder liner of Φ80mm. When the hole depth is 1000, we use cylinder liner of 65mm
|
TYPE |
Duplex cylinder double-acting Piston pump |
|
Piston Diameter(mm) |
80.65 |
|
Stroke length (mm) |
85 |
|
Discharge capacity( l/min) |
200;125 |
|
working pressure(kg /sq.cm) |
4;6 |
|
power |
18HP (diesel engine)or 11KW ( eletric motor) |
|
Suction pipe diameter(mm) |
65 |
|
Dicharge pipe diameter |
37 |
|
Diamensions(L×W×H) |
1050*630*820 |
|
Mass (kg): |
300 |
