1,High effieicncy with fast drill speed
2,hydraulic drive spindle type

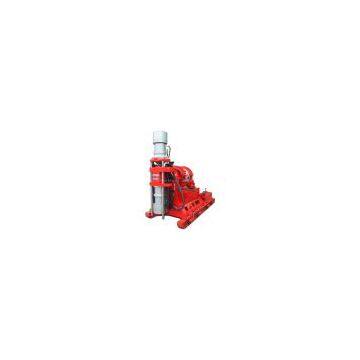

XY-5 mining drill rig is mainly used for metal and nonmetal solid deposit exploration diamond small caliber drilling. Can also be used for large diameter alloy drilling. Drilling vertical holes and inclined holes. Also be used for hydrological drilling of oil and gas field exploration and engineering.
XY-5 drill rig is mechanical - hydraulic drive spindle type core drilling rig. Rig reasonable structure, smooth operation, reliable work, easy to manipulate, strong and durable, the disintegration of performance, ease of installation, commissioning and repair characteristics.
The main technical parameters
1, drilling depth
Φ50 drill pipe: 1500m; Φ60 drill pipe: 1200m
2 gyrator
Spindle speed (4105G58 diesel engines)
Forward 8-speed: 80 ~ 1000r/min
Reverse 2-speed: 68; 211r/min
Spindle stroke: 600mm
Vertical shaft diameter: Φ96mm
Maximum lifting capacity: 250kN
Maximum pressure capacity: 180kN
3, winches
Lifting speed (third floor): 0.9; 1.8; 2.45; 3.2m / s
Maximum lift capacity (single rope): 40kN
4, the mobile device
Moving the cylinder stroke: 450mm
5, power (optional)
Motor: 55kW; 1470r/min
Diesel Engine: 70kW; 2000r/min
6, the rig weight (not including power): 3000kg
Dimensions (L × W × H): 3190 × 1495 × 2140mm
8, power
The motor: Y250M-4 type 55kw 1470r/min
Diesel: R4105ZG4 62kw 2000r/min
9 Weight (without power): 3620kg
