Detailed Product Description
Float and hard low-e glas
Beckhoff intelligent control
Advanced heating and Special cooling system

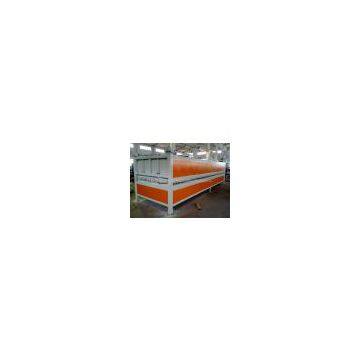

Glass tempering machine
Advantages:
Optimum glass flatness:
The lowing distance can be separately controlled by computer for the upper quench and lower quench, so it's easy for them adjustment and control of the glass flatness.
Stress maks on temperd glass removed
Reasonablel air hole layout and swing of rollers remove tempering stress spot.
Advanced heating system
Special design heating system and intelligent power adjustment make the temperature control more accurate.
Application
1. This type of machine is to process flat glass (heat enforced safety glass), the finished products are mainly used for furniture, home use application and building.
Machine specification
Total length of the machine:16.8m,main body: 3.5M, cooling fan:30-40m2
Processed glass dimension
Max. glass dimension: 2400mm×3600mm (5-19mm)
2440mmx1500mm(4mm)
Min. glass dimension: 100mm×300mm
Glass thickness range: 4~19mm
Output: 3097 square meters (5mm float glass, 24 hours running, loading rate 85%)
Glass type
Transparent float glass or flat glass
Mass color float glass or flat glass
Single side printed glass
On line low-e glass
Quality standard
The product meets to Chinese national quality standard
Glass stress equilibrium, particle even
Quality of all finished glass are the same
Heat resistance: confront to international standard
Warranty
Warranty period of the whole machine: one year
Machine commissioning and training
The machine needs 3 commissioning technicians to install and commissioning at buyer’s factory.

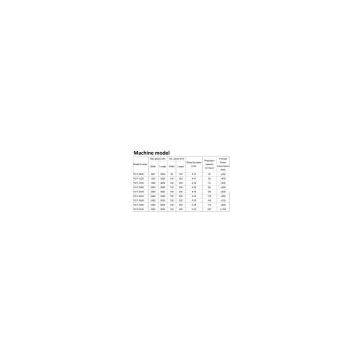

Machine type
|
Model Number |
Max glass (mm) |
Min. glass (mm) |
Glass thickness (mm) |
Production capacity (sqm/hour) |
Power (kW) |
||
|
Width |
Length |
Width |
Length |
||||
|
YD-F-0920 |
900 |
2000 |
50 |
120 |
4-12 |
22 |
300 |
|
YD-F-1225 |
1250 |
2500 |
100 |
250 |
4-15 |
38 |
430 |
|
YD-F-1540 |
1500 |
4000 |
100 |
300 |
5-19 |
72 |
550 |
|
YD-F-2036 |
2000 |
3660 |
100 |
300 |
5-19 |
86 |
600 |
|
YD-F-2436 |
2400 |
3600 |
100 |
300 |
5-19 |
103 |
500 |
|
YD-F-2442 |
2400 |
4200 |
100 |
300 |
5-19 |
115 |
550 |
|
YD-F-2450 |
2400 |
5000 |
100 |
300 |
5-19 |
145 |
750 |
|
YD-F-2460 |
2400 |
6000 |
100 |
300 |
5-19 |
173 |
900 |
|
YD-F-3180 |
3000 |
8000 |
100 |
350 |
5-19 |
297 |
1100 |
|
YD-F-3580 |
3500 |
8000 |
200 |
400 |
5-19 |
366 |
1400 |
