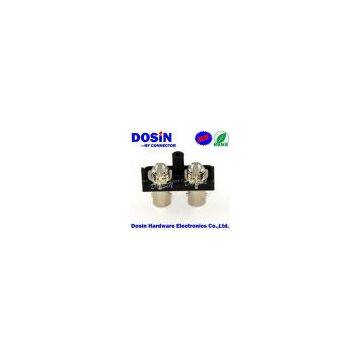

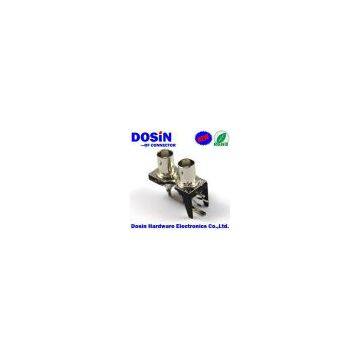

Waterproof Double Jack Bnc Connector

Brand name:   DOSIN        type:BNC

gender:       female       material:copper or zinc alloy

place of origin: china     model number:DOSIN-2069

Features:

1.miniature quick connect/disconnect RF connector

2.Great for short distance connection

3.Simply & Professional appearance for cabling

Application:

Telecom,Antennas,Radios,Broadcast,Coaxial cable,CCTV.

Specification:

Mechanical Characteristics

Characteristic Impedance:    50ohm&75ohm

Frequency Range:      DC~2GHz

Withstand Voltage:      1500V rms (sea level)

Working Voltage:      500V max

Insulation Resistance:      5000 Mohm min

Contact Resistance:      Inner conductor:1.5 mohm max

                     Outer conductor: 1 mohm min

VSWR:        Straight :    1.22 max

       Right angle:  1.30 max

Durability (mating)      500 cycles min
