Home > Packaging & Printing > Packing Machinery > Filling Machine > High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine

Name: High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine
Brand: Junsheng
SKU: 148028454
Availability: InStock

Dongguang Dahua Carton Machinery Manufacture Co.,Ltd.

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine thumbnail-1

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine thumbnail-2

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine thumbnail-3

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine photo-1

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine photo-2

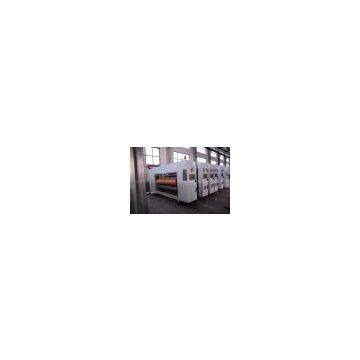

High Speed Flexo Printing Slotting (Rotary Die-cutting) Machine photo-3

US$ 45000 - 45000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Junsheng

Place of Origin:

China

Model Number:

SYKM-300(405,420,480)

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Junsheng

Place of Origin China

Model Number SYKM-300(405,420,480)

Optional part:

a. 1 color,2 colors,3 colors ,4 colors or multi-color for customer’s choice.

b. slotting part and/or rotary die-cutting part can be choose by customer.

c. SYKM300/SYKM405/SYKM420/SYKM480… series models and specifications to meet customers’ requirement.

Function and Characteristics:

◆ The complete machine is designed and manufactured according to high requirement of reliable and safe functions.The operation is humanity designed,it can be setting,correction, performing,replacement,memory in a short time,and display the exact digit.

◆ All the transmission rollers adopt high quality steel materials,hard chromium plating and the surface treated by grinding.

◆ The transmission gears adopt 40Cr high grade alloy steel,by heated treatment and grinding finished(Hardness>60HRC).

◆ All the drive axles and adjustment axles adopt keyless connection,reduce connect clearance,to insure the color process printing (especially multi-color printing) more accurate.

◆ Lubricate oil automatic balance device,keep the equal oil level between each unit.

◆ The machine adopt PLC control,have automatic zero return and memories etc functions ( touch screen with PLC control can be choose by customer).

◆ Cardboard lead edge feeding(servo motor lead edge feeding mode can be choose by customer).

◆ Cardboard feeding part can frequency adjust the vacuum absorb air volume to suit for different cardboard size.

◆ Steel anilox roller or ceramic roller can be choose by customer,and the lines of the anilox roller will be adopted according to customer requirement.

Main technology parameters:

Model number	unit	2400	2600	2600	2600
Roller diameter	mm	Ā300	Ā405	Ā420	Ā480
Max.feeding size	mm	950x2300	1270x2500	1300x2500	1500x2500
Max.printing size	mm	850x2100	1150x2300	1200x2300	1400x2300
Max.skip feeding size	mm	1100x2300	1300x2500	1450x2500	1650x2500
Min.feeding size	mm	260x650	350x650	380x650	400x650
Thickness of cardboard	mm	2-11	2-11	2-11	2-11
Standard thickness of printing plate	mm	7.2	7.2	7.2	7.2
Max.machinery speed	pcs/min	200	180	180	180
Economic printing speed	pcs/min	150	150	140	140

Function of feeding part(lead edge feeding):

◆ Continuous or skip cardboard feeding,counting device is installed.

◆Thefeedingroller is rubber with cylinder cushioning device,precise and reliable feeding,will not destroy the hardness of the cardboard when the feeding space is small.

◆The left-right baffles position adopt electrical digital control,(here can add automatic pneumatic aligning device),the back baffle box adopt electrical adjustment,the front baffles space is synchronous manual adjustment.

◆Brush dust-removal equipment and dust-absorption blower can clean the surface dust of the cardboard,it can adjust the wind volume accord to the cardboard size.

◆ Each unit is electric walking with warning bell,to insure the operator safe.

◆ Electronic counter can set up the production quantity,when get to the production quantity,automatic warning.(if choice the touch screen control,the touch screen will display the production quantity).

Function of printing part:

◆ The printing roller adopt seamless steel tube,the surface is treatment by grinding,hard chromium plating,balance correction,operate smoothly.

◆ Quickly replacement printing plate device,foot switch for electric control the printing roller’s clockwise and anticlockwise running.

◆ The feed roller,press roller,rubber roller and anilox roller space adjustment all adopt self-locking structure.

◆ The phase of the printing rollers adopt PLC and electric digit input mode 360°adjustment,it can be adjusted while the machine running or stop.

◆The transversal moving of thee printing roller adopt PLC and electric adjustment,accord the error to input the adjust digit,the adjust scope is ±10mm.

◆ The printing phase fix device,cylinder brake organ,when the units separate or washing,the brake device will stop all the units gears running and keep the original location of the gears.

◆ The anilox roller adopt the automatic pneumatic control up and down device which synchronous with the cardboard feeding system.(when the cardboard is feeding,the anilox roller of each printing unit will automatic orderly go down.when stop feeding,the anilox roller will automatic go up.)

◆ Pneumatic membrane pump inking,automatic circle,water washing.

◆ Printing plate cleaning memory function,after washing the printing plate,the printing roller will running back to the original printing position.

Function of slotting part:

◆With pre-creasing wheels for prevent the cardboard rupture while creasing.

◆Single roller with double knives slotting,the carton height adjustment adopt PLC and electric digital input mode.(optional:PLC with touch screen adjustment)

◆The phase of slotting adopt PLC and electric digital input 360°adjustment,accord the error to input the adjust digit,can be adjusted while the machine running or stop. (optional:PLC with touch screen adjustment)

◆The slotting knives seat and the line creasing wheels transversal movement adopt electric synchronous adjustment(optional:PLC touch screen adjustment,input the size of the carton directly into the touch screen,will be automatic adjusting).

◆ Creasing space and knife roller space adjustment adopt self-locking structure.

◆ The carton height adjustment have an anticollision device for the slotting knives,will not destroy the machine.

◆ An anticollision device is used while the slotting knife seat transversal movement.(electronic formula)

◆ The width of slotting knife is 7mm,adopt alloy steel material,by heat treatment and grinding,tooth-edge slotting knife and two-piece edge revise knives,are sharp edge,and high precision.

◆ The hole and handle tool as an option.

Function of die-cutting part:

◆ The rubber roller adopt mechanical screw control the left and right position movement.The movement distance is 40mm.

◆ The phase of the die-cutting roller adopt PLC and electric 360° digit adjustment,accord the error to input the adjust digit,can be adjusted while the machine running or stop.( Option: PLC with touch screen adjustment)

◆ The transversal moving of the die-cutting roller adopt PLC and electric digit input adjustment, input the adjust digit accord the error,adjust scope is ±10mm.( Option: PLC with touch screen adjustment)

◆ The space adjustment between rubber roller and die-cutting roller adopt self-locking structure,with cylinder big scope quickly adjust,decrease the rubber wear,increase the rubber life.

◆ The space adjustment between the feed rollers adopt self-locking structure.

◆ The unique speed compensation device can make the rubber roller roll running with the die plate roller,make the surface speed of the rubber cushion roller is completely controlled by the die pattern ,the shape of the carton sheet will absolutely equal to the die pattern.

◆ There is rubber repair device with the machine,the rubber can be used after repaire many times.
