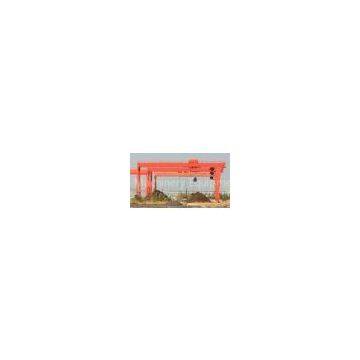

35 Ton + 35 Ton, 16 Ton / 10 Ton Heavy Duty Grab Bucket & Magnetic Chuck Gantry Crane For Scrap Yard
- T/T L/C D/P D/A
- 7 days
You May Like
-
200 Ton Ship Building Gantry Crane / Shipyard Cranes For Hull Section Building
-
300t Double Girder Gantry Crane, Shipyard Cranes With Double-Trolley For Ship Building
-
200t Ship Building Gantry Crane / Shipyard Cranes For Ship Assembly Operations
-
300t Main Girders Rain-Proof Gantry Crane With Double-Trolleys For Ship Building
-
200 Ton Heavy Duty Gantry Crane, Shipyard Cranes For Ship Building
-
300 Ton Gantry Crane With Double-Trolley For Ship Building
Product Details
| Brand Name | ENCORE | Place of Origin | China | |
| Model Number | ME35t+35t-53m, A7 |
Product Description
35 ton + 35 ton, 16 ton / 10 ton Heavy Duty Grab Bucket & Magnetic Chuck Gantry Crane For Scrap Yard
Description:
The gantry crane consists of 6 parts:
- Girders and leg support,
- Long traveling driving units,
- Cross traveling trolley,
- Electric equipment,
- Hook block,
- Grab and magnet plate.
Applications:
Summary
- The crane is applied in outdoor area, such as stacking of scrap steel at scrap yard, unloading container and loading crap steel onto truck.
- Duty Classification ISO A8. Life of equipment – 30 years.
- Working environment: outdoor scrap steel yard. Protection against heavy dust, wet weather and erosive substance incorporated. Qualified for heavy duty work.
General working procedure
- Unload the scrap in the container
- Trolley A & B lift up container by the 2 synchronized hook. Then one hook moves up. So the container tilted and the crap steel inside falls out- Grab & magnet plate for scrap handling
Trolley A’s hoist mechanism: Trolley B’s hoist mechanism:
Hook + grab Hook + magnet plate
Specifications:
|
General Technical Specifications of Gantry Crane |
||||||||
|
Hook A |
Magnet |
Hook B |
Grab |
Trolley A |
Trolley B |
Long Travel |
||
|
Capacity (t) |
35 |
10 |
35 |
16 |
Duty classification |
M6 |
M6 |
M6 |
|
Hook path (m) |
20 |
|||||||
|
Duty classification |
M8 |
M6 |
M8 |
M8 |
Lifting speed (m/min) |
4~40 |
4~40 |
5~50 |
|
Lifting speed (m/min) |
||||||||
|
Power Supply |
3 Phase AC 380 V |
|
Technical Parameter Table for Grab |
|||
|
Item |
Parameter |
Item |
Parameter |
|
Volume |
3.2 m3 |
Voltage |
380V, 50Hz |
|
Level of antisepticise |
F2 |
Level of Protection |
IP 55 |
|
Motor output power |
37 kw |
Motor input power |
45 kw |
|
Insulation class |
F |
Dead Weight |
2190 kg |
|
Open height |
3590 mm |
Close height |
3740 mm |
|
Open width |
|
