Stepless Adjustable Arc-suppression Coil

Baoding Tianwei Hengtong
Stepless Adjustable Arc-suppression Coil thumbnail-1
Stepless Adjustable Arc-suppression Coil thumbnail-2
Stepless Adjustable Arc-suppression Coil thumbnail-3
Stepless Adjustable Arc-suppression Coil photo-1

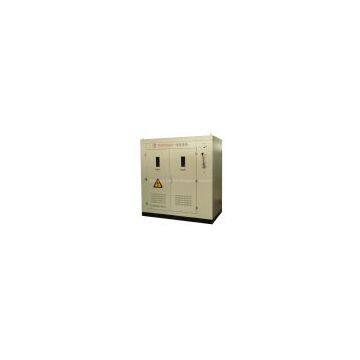

Stepless Adjustable Arc-suppression Coil photo-2

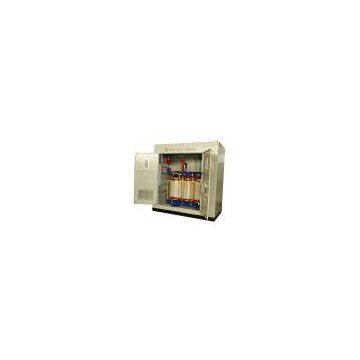

Stepless Adjustable Arc-suppression Coil photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
THT
Place of Origin:
China
Model Number:
THT-PXHK
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name THT
Place of Origin China
Model Number THT-PXHK

1.Purpose:

This product is used in 6KV~66KV systems whose neutral point is ungrounded to limit the arcing currents during ground faults.

 2.Features:

2.1 full-statically structured free of any movable components inside

2.2 Compensation response speed is not higher than 20ms

2.3 Electric control is steplessly and continuously adjustable

2.4 Automatically track and scan the neutral voltage and capacitance current

2.5 Compensation current allows an extensive regulation range, ratios of both upper and lower limits reach to 6-10 times

2.6 Dynamic compensation, no damping resistor is required

2.7 Automatic or manual switch-over

2.8 Allowable configuration of 422/485 serial interfaces as required by the user

2.9 Single-phase grounding line selection unit is optional for the device to monitor multiple feed branches

 3.Principle:

\".jpg\"



4.Structure:

4.1  Control cabinet

4.2  Biasing magnetic arc-suppression coil

4.3  Grounding transformer

 5.Data sheet



6KV arc-suppression coil

10KV arc-suppression coil

35KV arc-suppression coil

Type

Max compensation current

Type

Max compensation current

Type

Max compensation current

THT-PXHK—6/10

10

THT-PXHK—10/10

10

THT-PXHK—35/10

10

THT-PXHK—6/20

20

THT-PXHK—10/20

20

THT-PXHK—35/20

20

THT-PXHK—6/30

30

THT-PXHK—10/30

30

THT-PXHK—35/30

30

THT-PXHK—6/40

40

THT-PXHK—10/40

40

THT-PXHK—35/40

40

THT-PXHK—6/50

50

THT-PXHK—10/50

50

THT-PXHK—35/50

50

THT-PXHK—6/60

60

THT-PXHK—10/60

60

THT-PXHK—35/60

60

THT-PXHK—6/70

70

THT-PXHK—10/70

70

THT-PXHK—35/70

70

THT-PXHK—6/80

80

THT-PXHK—10/80

80

THT-PXHK—35/80

80

THT-PXHK—6/90

90

THT-PXHK—10/90

90

THT-PXHK—35/90

90

THT-PXHK—6/100

100

THT-PXHK—10/100

100

THT-PXHK—35/100

100

THT-PXHK—6/120

120

THT-PXHK—10/120

120





THT-PXHK—6/140

140

THT-PXHK—10/140

140





THT-PXHK—6/160

160

THT-PXHK—10/160

160





THT-PXHK—6/180

180

THT-PXHK—10/180

180





THT-PXHK—6/200

200

THT-PXHK—10/200

200





Note:Only for your reference.
