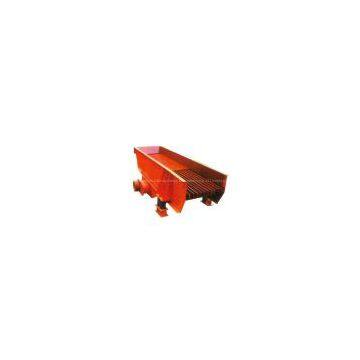

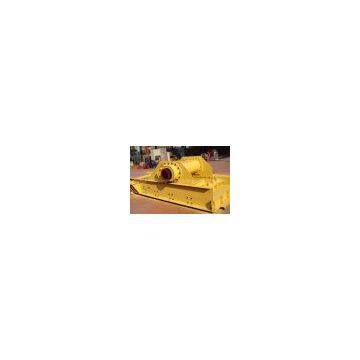

High Performance Magnetic Vibrating Feeder Made in China

High performance magnetic vibrating feeder made in China

1. Introduction of vibrating feeder:

  Vibrating giver is also known as vibrating feeder, our company produces the GZD series of vibrating feeder, it is a special new designed vibrating feeder for uniform transmission the large materials before the crusher of coarse screening, it used double eccentric shaft vibration to ensure the equipment can suffer the impact of big material falling, and to prevent the phenomenon of death which caused by uneven feed to feeder device, extend the equipment using life. Feeder machine can divided into plate structure and grate structure. the plate structure feeder machine most used in the sand rock production line, transport evenly all material into the broken equipment, rate structure feeder machine can screened coarsely the materials. so it is more rational economic in system configuration. it is as the indispensable equipment in the crushing equipment, so it is widely used in the metallurgy, coal, ore dressing, building materials, chemical, grinding compound breakage, etc industry’s broke and screen.

2. Features of vibrating feeder:

1) smooth vibration, reliable working

2) low noise, small wasted energy,no rush material phenomenon,

3) long life, easy maintenance

4) light weight, small size, convenient installation

5) comprehensive performance is good

3. Working principle of vibrating feeder:

GZD serial of vibrating feeder is composed of feeder groove, exciter, spring bearing, gear etc. the vibration source of the groove feeding vibration is exciter, exciter is composed of two eccentric shaft and gear. the motor through the triangle to drive the active axis. The up gear of the active axis drives the passive-axis with rotating, active and passive axis reverse rotation at the same time, make the body vibrate and continuous flow of materials, to achieve the purpose of conveying materials.

4. Specification of Vibrating Feeder:
