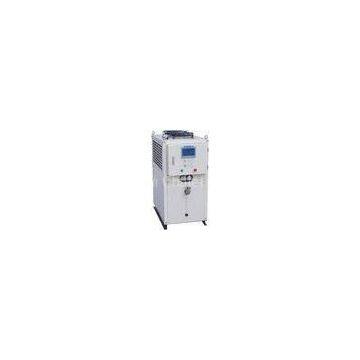

PH-LW1560-WHP High efficient stable air-cooled Laser water chiller with EBM Fan
1) Water Chiller
2) Stainless steel heat exchanger3) Danfoss compress
4) CE Certified
5) EBM Fan
Specifications:
| Model | PH-LW903-WHP | PH-LW1200-WHP | PH-LW1560-WHP | |
| Cooling Capacity | W | 90300 | 120000 | 156000 |
| Btu/Hr | 310600 | 412800 | 534000 | |
| Kcal/Hr | 77700 | 103200 | 134000 | |
| Power | specification | |||
| Max.runing current A | 61 | 85 | 100 | |
| Max.start current A | 230 | 290 | 340 | |
| Compressor | Nominal power HP | 15×2 | 20×2 | 25×2 |
| Rated input power W | 28100 | 19000×2 | 2360×2 | |
| Chilled water | water temp. | 8~25 | ||
| tank volume L | 300 | 400 | ||
| connection inch | 2\" | 2\" | ||
| Pump | Power W | 3000 | ||
| Max.lift m | 38.5 | |||
| Max. flow m³/h | 22 | |||
| Condenser | Pressure KPa | 500 | 800 | |
| Flow m³/h | 19 | 25 | 31 | |
| water inlet temp. | ≤35 | |||
| connection inch | 2½\" | 3\" | ||
| Dimension(L×D×H) mm | 1700×1000×1500 | 2000×1100×1600 | ||
| Net weight kg | 650 | 800 | 900 | |
| Noise dBA | 76 | 80 | 82 |
Laser water chiller
Characteristics and functions:
1.Model: PH-LW903-THP / PH-LW1200-THP/ PH-LW1560-THP
2.Air cooled (top exhaust ) sigle temperature single control series;
3.Compact and beautiful Structure;
4.High efficient stable and low noise system;
316 stainless plate heat exchanger
German ebm and ZIEHL-ABEGG fans
International brand scroll compressor
thread tube shell and tube condenser
5.digital temperature controller, automatic accuracy and simple control system.
6. Equipped with over -high/ low temperature alarm, pressure gauge and protector,water level device.
7. High head, high flow, high clean water cycling system.stainless connector on the water tank.
8. Single temperature and single control
Note:
1.the above specifications are based upon the ambient temperature at 30oC,amd water temperatue at 22.oC;
2.Design and specification are subject to change without prior notice;
3. Please contact with us for specifications or design.
air-cooled Laser water chiller
