JZ21-250A 250 kN 70-110 SPM 400mm F.B 700mm L.R C Type Mechanical Power Press (25ton) Machine

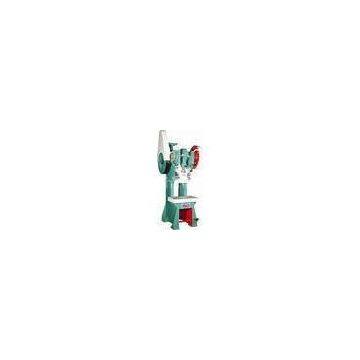

JZ21-250A 250 kN 70-110 SPM 400mm F.B 700mm L.R C Type Mechanical Power Press (25ton) Machine thumbnail-1
JZ21-250A 250 kN 70-110 SPM 400mm F.B 700mm L.R C Type Mechanical Power Press (25ton) Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yasini
Place of Origin:
China
Model Number:
JZ21-250A
Contact Supplier Request Quote Chat Now
Power Press Machine Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yasini
Place of Origin China
Model Number JZ21-250A
Delivery Time:7-25days
Certification:CE,ISO,SGS,FDA
JZ21-250A 250 kN 70-110 SPM 400mm F.B 700mm L.R C Type Mechanical Power Press (25ton) machine

Features:

Universal high performance press are widely used in the fields of aeronautics,auto,agriculature machines,electric machines,apparatuses and meters,medical equipments,electrical home appliance and hardware:                                          Welded frame with quality steel which means good rigidity                                       Square figure long guide with six friction faces makes abrasion resistant and punching precision                                          Rigid overload protector can protect the die when overloading                                      Combined pneumatic clutch and brake is made of friction material, which means long service life                                        Closed gear-driven, dipped in lube, which drives stably with low noise                      Slide with counter balancer, which will eliminate the clearance and improve the stability and precision                                          Lubrication makes every point get fine and safe lubrication. Thus, long service life is saved PLC electric control system is safe and reliable.                                        Photo guard, auto feeder, speed die changing and variable-speed device are optional.

Specification

Item Unit JZ21-25A JZ21-40A JZ21-63A JZ21-80A JZ21-100A
Nominal Pressure kN 250 400 630 800 1000
Nominal Pressure Stroke mm 3 4 4 4.5 5
Slide Stroke mm 80 100 120 130 140

No. of Strokes per minute		 Fixed PM 100 85 60 60 50
Variable SPM 70-110 50-95 45-75 40-70 30-60
Max.Die Height mm 250 270 300 330 350
Die Height Adjustment mm 50 60 70 80 90
Throat Depth mm 210 225 260 310 360
Bolster Surface F.B. mm 400 440 500 600 680
L.R. mm 700 810 850 1000 1100
Thickness of Bolster mm 80 110 130 140 155
Slide Surface Size F.B. mm 250 340 400 460 520
  mm 360 410 480 540 630
Stemhole mm Φ40X50 Φ40x65 Φ50X65 Φ50X80 Φ50X85
Distance between Uprights mm 450
