100ton - 315ton JE25 2500 KN C Frame Double Cranks Power Press Brake Machine

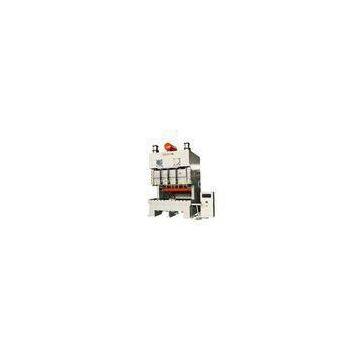

100ton - 315ton JE25 2500 KN C Frame Double Cranks Power Press Brake Machine thumbnail-1
100ton - 315ton JE25 2500 KN C Frame Double Cranks Power Press Brake Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yasini
Place of Origin:
China
Model Number:
JE25
Contact Supplier Request Quote Chat Now
Power Press Machine Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yasini
Place of Origin China
Model Number JE25
Delivery Time:7-25days
Certification:CE,ISO,SGS,FDA
 100ton - 315ton JE25 2500 KN C Frame Double cranks Power Press brake machine

Features:

With double crankshaft, welded frame and square guide ways, the machine has the ability of anti-eccentrical load and high precision, which assures high efficiency and high quality production. The press adopts hydraulic overload protector and PLC controller.                                Feeding shaft, air cushion can be supplied according to customers’ requirements.

Specification:

Item Unit JE25-100 JE25-160 JE25-200 JE25-250 JE25-315
Nominal Pressure kN 1000 1600 2000 2500 3150
Nominal Pressure Stroke mm 5 6 6 7 8
Slide Stroke mm 140 160 200 250 280
No. of strokes per minute variable SPM 35-65 30-60 30-50 20-40 20-35
Max. Die Height mm 400 450 500 550 550
Die Height Adjustment mm 90 100 110 110 110
Throat Depth mm 350 390 430 470 480

Bloster Surface Size		 F.B. mm 680 760 840 920 940
F.B. mm 1880 2040 2420 2700 2800
Thickness of Bolster mm 150 160 170 180 190

Slide Surface Size		 F.B. mm 520 580 650 650 700
F.B. mm 1450 1600 1850 2160 2200
Stemhole Size mm 3-Ø50X80 3-Ø50X80 3-Ø50X80 3-Ø50X80 3-Ø50X90
Distance between Uprights mm 1520 1620 1900 2200 2180
Optional Cushion Pressure kN 60X2 100X2 100X2 100X2 100X2
Stroke mm 50 70 70 70 70
Main Motor Model   YCT225-4B YCT250-4B YCT280-4A YCT315-4A YCT315-4A
Power kW 15 22 30 37 37
Slide Motor Model
