Negotiable
MOQ: 1 Metric Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
P.V.C Extruded Insulation Tube
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Place of Origin
China
Model Number
P.V.C Extruded Insulation Tube
|

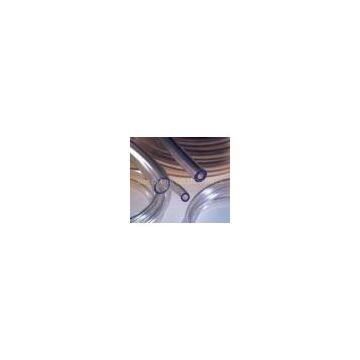

P.V.C Extruded Insulation Tube P.V.C extruded flexible tubing are widely used for protection and insulation of cable and wire.It has characters of excellent insulation and good flexibility.The standard color is black and clear. The other colors are available on request.
Type: ( 300V ) SHT-300:For application of 300V voltage. ( 600V ) SHT-600:For application of 600V voltage. Approval: CUL and RoHS. |
| Property requirement | |
| Iitem | Value |
| Temperature rating | 105℃ |
| Voltage dielectric | 300V or 600V |
| Operating temperature | -30℃~105℃ |
| Tensile strength | 10.4MPA(1500psi) |
| Flammability | VW-1 |
| Volume resistivity | 10Ω10-cm |
| AWG NO. | ID(mm) | Tolerance(mm) | Thickness of wall(600V 105 C) | Thickness of wall(300V 105 C) | Standard packing |
|
20
|
0.86
|
0.2
|
0.43-0.55
|
0.34-0.45
|
1000feet(305Meters)
|
|
19
|
1.0
|
0.2
|
0.43-0.55
|
0.34-0.45
|
1000feet(305Meters)
|
|
18
|
1.07
|
0.2
|
0.43-0.55
|
0.34-0.45
|
1000feet(305Meters)
|
|
17
|
1.19
|
0.2
|
0.43-0.55
|
0.34-0.45
|
1000feet(305Meters)
|
|
16
|
1.34
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
15
|
1.5
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
14
|
1.68
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
13
|
1.93
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
12
|
2.16
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
11
|
2.41
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
10
|
2.69
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
9
|
3.0
|
0.2
|
0.56-0.70
|
0.34-0.45
|
1000feet(305Meters)
|
|
8
|
3.38
|
0.2
|
0.56-0.70
|
0.43-0.55
|
1000feet(305Meters)
|
|
7
|
3.76
|
0.2
|
0.56-0.70
|
0.43-0.55
|
1000feet(305Meters)
|
|
6
|
4.22
|
0.2
|
0.56-0.70
|
0.43-0.55
|
1000feet(305Meters)
|
|
5
|
4.72
|
0.2
|
0.56-0.70
|
0.43-0.55
|
1000feet(305Meters)
|
|
4
|
5.28
|
0.2
|
0.56-0.70
|
0.43-0.55
|
1000feet(305Meters)
|
|
3
|
5.94
|
0.2
|
0.56-0.70
|
0.43-0.55
|
1000feet(305Meters)
|
|
2
|
6.68
|
0.2
|
0.56-0.70
|
0.43-0.55
|
500feet(153Meters)
|
|
1
|
7.47
|
0.2
|
0.56-0.70
|
0.43-0.55
|
500feet(153Meters)
|
|
0
|
8.38
|
0.2
|
0.56-0.70
|
0.43-0.55
|
500feet(153Meters)
|
|
3/8
|
9.53
|
0.2
|
0.56-0.70
|
0.56-0.70
|
250feet(76Meters)
|
|
7/16
|
11.1
|
0.2
|
0.56-0.70
|
0.56-0.70
|
250feet(76Meters)
|
|
1/2
|
12.7
|
0.2
|
0.56-0.70
|
0.56-0.70
|
164feet(50Meters)
|
|
9/16
|
14.3
|
0.2
|
0.76-0.95
|
0.76-0.85
|
164feet(50Meters)
|
|
5/8
|
15.9
|
0.2
|
0.76-0.95
|
0.76-0.85
|
164feet(50Meters)
|
|
3/4
|
19.0
|
0.2
|
0.76-0.95
|
0.76-0.85
|
164feet(50Meters)
|
|
7/8
|
22.2
|
0.2
|
0.76-0.95
|
0.76-0.85
|
164feet(50Meters)
|
|
1
|
25.4
|
0.2
|
0.76-0.95
|
0.76-0.85
|
164feet(50Meters)
|
|
1-1/16
|
27.0
|
0.2
|
0.76-0.95
|
0.76-0.85
|
164feet(50Meters)
|
|
1-1/4
|
31.8
|
0.2
|
0.81-0.87
|
0.76-0.95
|
164feet(50Meters)
|
