Place of Origin China
Model Number Silicone Rubber Tube
20px arial, helvetica, sans-serif; white-space: normal; orphans: 2; letter-spacing: normal; color: rgb(0,0,0); word-spacing: 0px; -webkit-text-size-adjust: auto; -webkit-text-stroke-width: 0px\">

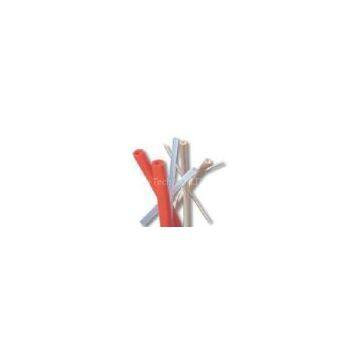

Silicone Rubber Tube is manufactured by good silicone rubber with scientific formula, via advanced technology processing.It has good flexibillity, high temperature resistance, and good stability, can be widely used for providing insulation protection for household electric appliance, industrial electric appliance.



Characteristics:
1.Continuous operating temperature: -60℃ -200℃;

2.Flexible, arc-resistance, corona-resistant;

3.RoHS compliant, with FDA certificate for food industry;

Standard color: Red, blue, white, grey, green, transparent, (Other color available upon request.)

Technical Data:

Property

Test Method

Stantard
Dielectric strength(kv/mm)
GB/T 1408
≥18
Volume Resistance(Ω.cm)
GB/T 1410
≥1×1014
Tensile Strength(MPa)
GB/T 1040
≥3.5
Elongation(%)
GB/T 1040
≥210
Flame-retardance(White color only)
GB/T 2408
FV-1

Specification:

Size

(mm)

I.D.

Thickness as per Voltage withstand(mm)

Standard

Packing

(m/spool)

(mm)

2500V(mm)

4000V(mm)

6000V(mm)

7000V(mm)
Φ0.8 0.8±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 200
Φ1.0 1.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 200
Φ1.5 1.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 200
Φ2.0 2.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
Φ2.5 2.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
Φ3.0 3.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
Φ3.5 3.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
Φ4.0 4.0±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
Φ4.5 4.5±0.10 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 100
Φ5.0 5.0±0.20 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ5.5 5.5±0.20 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ6.0 6.0±0.20 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ6.5 6.5±0.20 0.5±0.10 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ7.0 7.0±0.20 - 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ7.5 7.5±0.20 - 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ8.0 8.0±0.25 - 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ9.0 9.0±0.25 - 1.0±0.15 1.5±0.20 2.0±0.25 25
Φ10 10.0±0.25 - 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ11 11.0±0.30 - 1.0±0.15 1.5±0.20 2.0±0.25 25
Φ12 12.0±0.30 - 1.0±0.15 1.5±0.20 2.0±0.25 25
Φ13 13.0±0.30 - 1.0±0.15 1.5±0.20 2.0±0.25 50
Φ14 14.0±0.30 - - 1.5±0.20 2.0±0.25 50
Φ15 15.0±0.30 - - 1.5±0.20 2.0±0.25 25
Φ20 20.0±0.30 - - - 2.0±0.30 10
