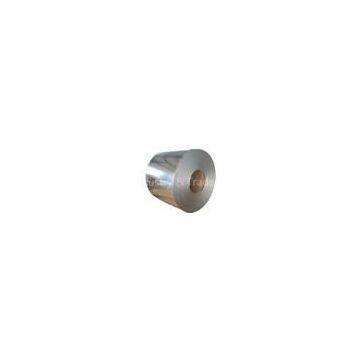

SGCC, DX51D 0.23mm to 3mm Double Side Durability Hot Dipped Galvanized Steel Strip

Process of Galvanized Steel Strips :

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.

Specifications of Galvanized Steel Strips :

1) Capacity: about 10,000ton per month for steel tape product
2) Thickness: from 0.20mm to 3.5mm, all available.
3) Width: from 5mm to 600mm, all available.
4) Grade: Q195, SGCC, DX51D
5) Coil weight: from 5kg to 6000kg, all available.

6) Coil ID: 100mm - 508mm
7) Coil OD: 500mm - 1300mm
8) Elongation: Min 10%
9) Tensile strength: 28.1-49.2kgf/mm2

10) Zinc coating weight: Min. 106g/m2, double side
11) Min trial order 5ton each thickness, 1 x 20\' per delivery.

12) Components: C%≤ 0.07, Si%≤0.03, Mn% ≤ 0.50, P% ≤ 0.025, S% ≤ 0.025, Alt% ≥ 0.02

 Features of Galvanized Steel Strips :

1)  Hot Dip Galvanized Steel Strip/Coil is manufactured to have a long durability, strong corrosion resistance and shiny surface.

2)  Hot Dip Galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending.

Applications for Galvanized Steel Strips :
1) cable armouring
2) deep drawing applications
3) constructions (roofs, outer walls, ovens, etc.)
