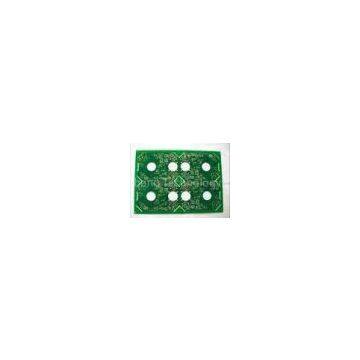

6 Layer Halogen Free OSP surface treatment SMT PCB Board Manufacturing

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Xinsheng		Place of Origin	China
Model Number	Zoomtak-PCB-014

Product Description

Delivery Time:5-25days
Certification:CE、ROHS、 FCC,UL ,SGS

6 Layer Halogen Free OSP surface treatment SMT PCB Board Manufacturing

Description

1. Single-sided, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. FR-1, CEM-1, CEM-3, FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test

Application

Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries

Advantage

1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL/RoHS)...

Specification

SERIAL	ITEM	TECHNICAL DATA
1	Layers	2－16(layers)
2	Max Board Size	18\" x 24\"
3	Max Board Thickness	6mm
4	Min Line Width	4mil
5	Min Line Space	4mil
6	Min Hole Size	12mil
7	PTH Wall Thickness	1mil
8	PTH dia tolerance	±3mil
9	NPTH hole dia tolerance	±2mil
10	Hole Position Deviation	±2mil
11	Outline Tolerance	±6mil
12	S/M Pitch	3mil
13	Insulation Resistance	1E+12Ω(Normal)
14	Thermal Shock	288 ℃(3x10Sec)
15	Warp and Twist	≤0.7%
16	Electric Strength	＞1.3KV/mm
17	Peel Strength	1.4N/mm
18	Solder Mask Abrasion	≥6H
19	Flammability	94V-0
20	Electrical test	10V -250V

Material	Surface Finish
CEM-1	OSP
FR-4	HASL
FR-4 High TG	HASL lead free
Aluminum PCB	Immersion/Chemical Gold
