5W Hybrid Power Supply

Kuantech(Shenzhen)Co.,Ltd

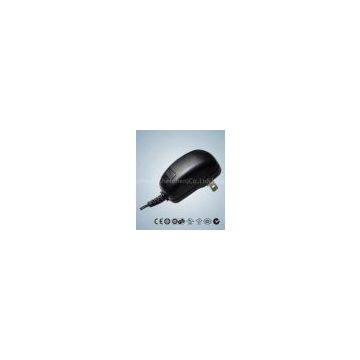

5W Hybrid Power Supply thumbnail-1
5W Hybrid Power Supply photo-1
Negotiable MOQ: 1 Pole (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
KSlFB
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number KSlFB
Delivery Time:20days

Key features of KSLFB  series

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC  level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their  respective safety approvals

●Completed protect function

●No Y CAP design

●Completed safety certifcation

Key ApplicationsofKSLFB series

It’s suitable for an extremely widerange of applications including:

●Audio&video product

●Mobile Devices

●Charge

●ADSL

●Set-top-box

●Household appliance

Input

●Input Voltage:   90 to 264 VAC

●Frequency :      47-50/60-63HZ

●Input Current :  0.15A(Max)  100/240VAC

●Inrush Current :50AMax  100VAC at max Load

                               60AMax  240VAC at max Load

●Leakage Current:0.1mA Max

Output

●Over voltage protection

●Over current protection

  at 110-300% of lo and Auto-recovery

●Operatingtemperature 0~40℃ free convection

●Operating humidity 10-80% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL60950-1 CSA C22.2

   NO.60950-1-03, GB4943

Certificates and approvals

●CB , GS , CE , UL , CCC, FCC, C-TICK, PSE

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test:EN 61000-3-2

●Flicker       Test:EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 57*35*25.2

Product tables for NS5W
Packing & shipping
Down Load
Click Down
