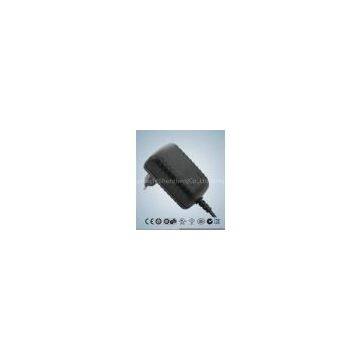

11W Hybrid Power Supply

Kuantech(Shenzhen)Co.,Ltd
11W Hybrid Power Supply thumbnail-1
11W Hybrid Power Supply photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
KSAS010
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number KSAS010
Delivery Time:20days

Key Features of KSAS010 series

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V, MEPS IV EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSAS010 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●ADSL

●Pos

●Audio & Video product

●Set-top-box

●Household appliance

Input

●Input  Voltage :  90 to 264 VAC

●Frequency     :    47-50/60-63HZ

●Input   Current :0.4A(Max)  100/240VAC

●Inrush Current :60AMax  100VAC at max  Load

                               100AMax  240VAC at max  Load

●Leakage Current: 0.25mA Max

Output

●Over voltage protection

●Over current protection

  at 110-250% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

   No. 60950-1-03, GB4943

Certificates and approvals

 ●CB , GS , CE , TUV, UL , CCC , FCC, PSE, KC, C-TICK

EMI Emission

●Radiation Test&Conduction Test:EN 55022/FCC Part 15

●Harmonic Test: EN 61000-3-2

●Flicker       Test: EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 72 * 38 * 28.5

Product tables for 11W
Packing & shipping
Down Load
Click Down
